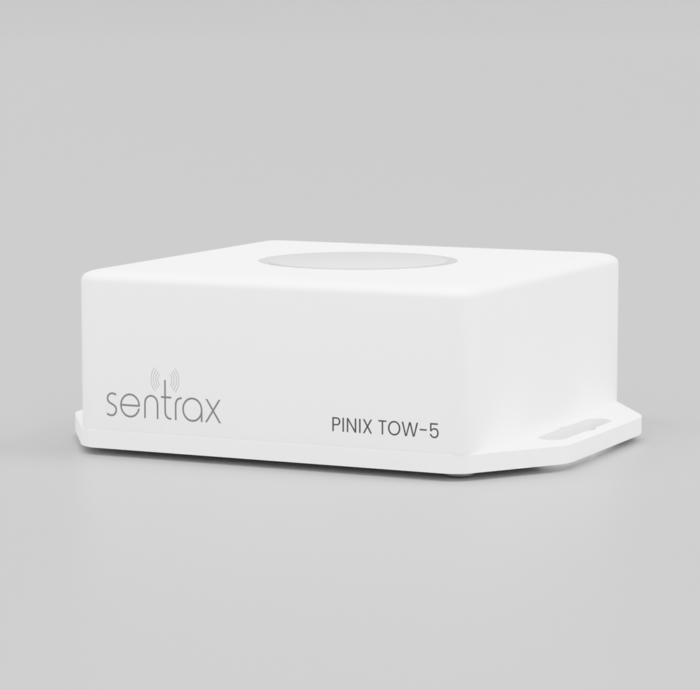

PINIX TOW-5

Description

The PINIX line is a series of advanced Bluetooth Low Energy 5.x devices using multi standard beacon technology. The PINIX TOW-5 is a BLE Angle of Arrival (AoA) Tag which is specially conceived for advanced business solutions using location based and asset tracking based applications. The PINIX TOW-5 can be easily mounted on various surfaces and uses commercially available replaceable button cells.

The PINIX TOW-5 is used for precise tracking of equipment and wares with replaceable 2Ah Lithium battery (about 3 Years battery life), with temperature, humidity, accelerometer sensors, button, LED and IP65 protected enclosure. It comes with a
downloadable SDK with an extensive library for easy integration into a wide range of location based and indoor tracking applications. It also includes a wide range tool facilitating optimal setup and installation.

Applications

  • Indoor localization
  • Location based services
  • Asset & logistics tracking

Features

Asset BLE 5.1 AoA Beacon for precision tracking of equipment and wares with replaceable 1Ah Lithium battery (up to 3 Years battery life), with temperature, humidity and accelerometer sensors, button, LED, IP65 protection

Bluetooth Radio
Type
Bluetooth Low energy 5.1 (AoA)
Advertisement
iBeacon, Eddystone (UID & TLM), sBeacon (Sentrax Proprietary)
Advertisement interval
100ms to 10 seconds
Frequency
2.4GHz
Transmit Power
+4dBm to -20 dBm
Antenna Type
Chip Antenna, Omni Directional
Sensors and Interfaces
Motion sensing
3 Axis Accelerometer
Button
1 user interact-able button
LED
1 Red LED
Pressure sensing
0.3 - 1.2 bar (Enhanced)
Humidity sensing
0 - 100 %RH (Enhanced)
Temperature
Internal Temperature Sensor
Enclosure
Material
ABS
Accessories
Double Sided Tape, Mounting Screw
Color
Beige

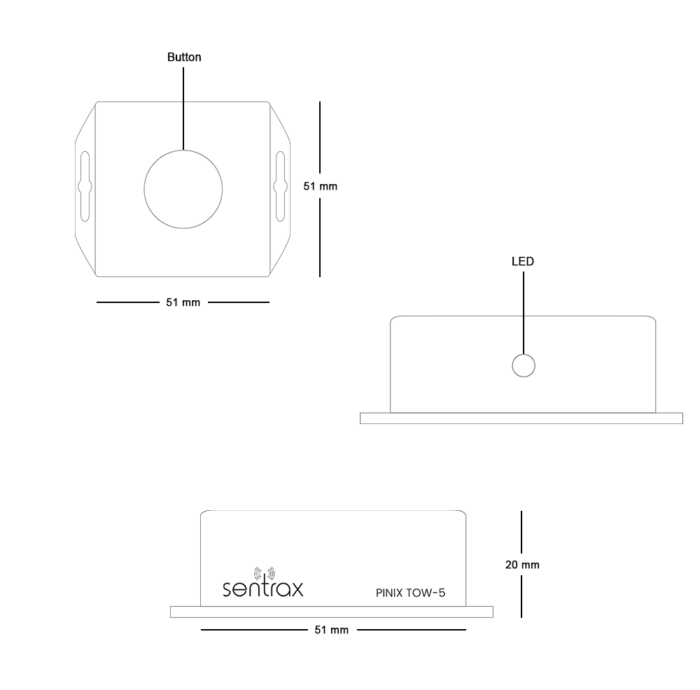

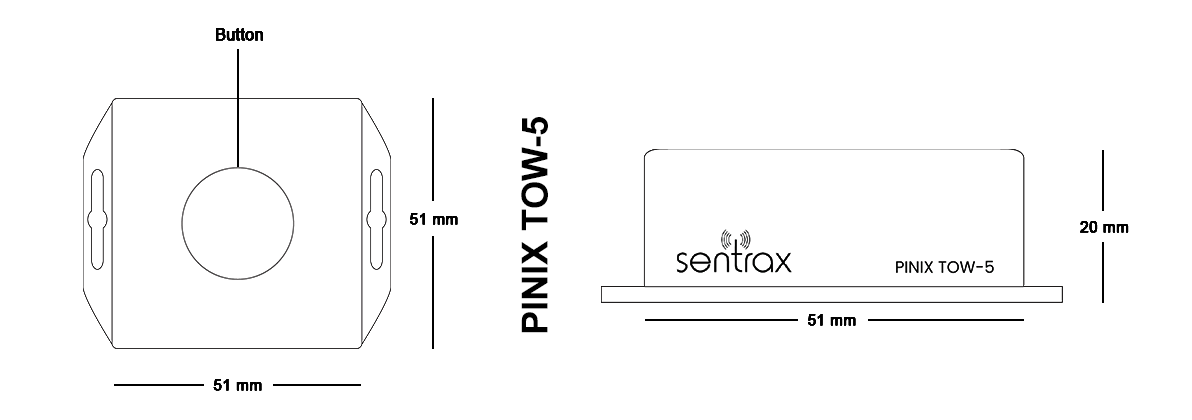

Dimensions
51 mm x 51 mm x 20 mm
Protection Class
IP65
Weight
45g
Battery
Battery Type
CR2477 x 1, 1000mAh, Replaceable
CR2477 x 2, 2000mAh, Replaceable (Enhanced*)

Battery Life:

(Advertisement Rate)
(Battery Life)
500ms
1 Year 11 months
5000ms
2 Years 9 months
Operating Environment
Temperature Range
-30°C to 85°C
Operating Humidity
90%
Certifications
CE**, FCC**

Sentrax Device Manager

With the Sentrax Device Manager (SDM) you can scan for nearby configurable PINIX beacons, display their battery status, view their ettings and make modifications to those settings. Configuration of beacons are password protected with a four (4) digit user settable PIN.

As an added safety feature, the beacons can only be configured with in a period of 15 minutes after installing the batteries or can be manually triggered into configuration mode by pressing the reset button on the Tag. However, this time duration can be increased through the settings to up to 3 weeks or forever.

1. *Enhanced version has life increase between 4 to 12 months based on advertisement rate.
2.**Pending
