PINIX TEK-1
PINIX TEK-1
BLE Lanyard Beacon Tag
What is PINIX TEK-1
The PINIX TEK-1 is a Bluetooth® Low Energy (BLE) 5.x wearable and lanyard beacon designed for reliable real-time person positioning, emergency response, and location monitoring across healthcare, retail, exhibition, activity-tracking, and high-security environments. Powered by the Nordic nRF52 chipset, it supports multiple BLE advertising protocols and features a lightweight, portable design with a replaceable CR2032 battery. The TEK-1 enables efficient indoor positioning and real-time visibility for person monitoring and safety applications.
Key Features & Benefits
Comfortable Wearable Design
Lightweight lanyard design ensures comfortable all-day wear for the person, visitors, and event participants.
220mAh CR2032 Replaceable Battery
Features a replaceable 220mAh coin-cell battery for continuous operation and simplified maintenance.
Multi-Protocol Bluetooth Support
Supports iBeacon, Eddystone, and S-Beacon advertising protocols for seamless integration with Bluetooth® low energy.

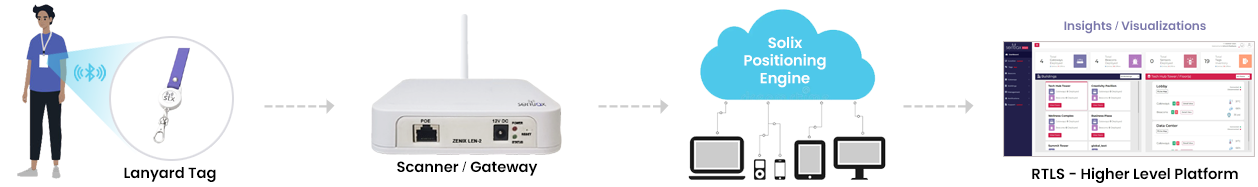

How It Works?
The PINIX TEK-1 broadcasts Bluetooth® Low Energy (BLE) signals using iBeacon, Eddystone, and S-Beacon advertising protocols. These signals are detected by Sentrax BLE RSSI gateways, enabling reliable indoor positioning and real-time location monitoring. The TEK-1 supports a wide range of applications, including person tracking, emergency response, activity monitoring, and proximity-based retail promotions.

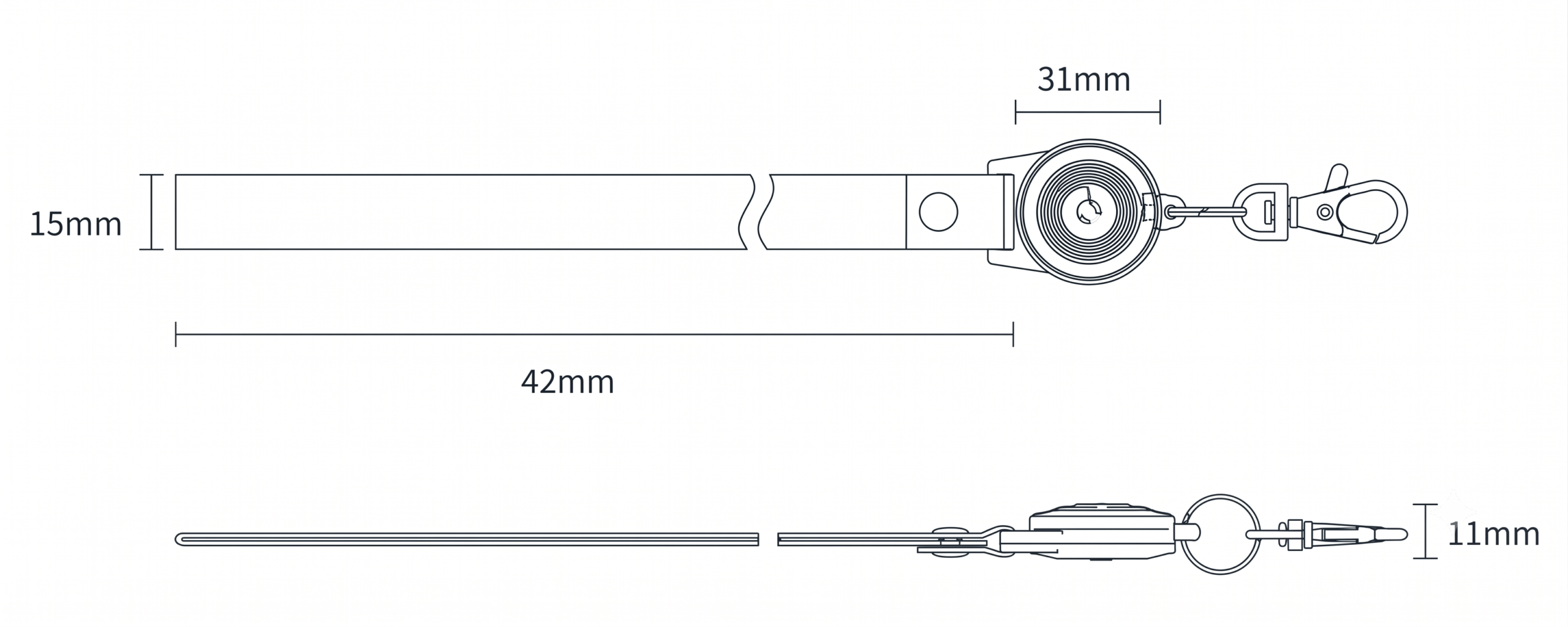

Mechanical Diagram
Technical Specifications
Download Datasheet| ENCLOSURE | |
|---|---|
| Material | ABS |
| Accessories | Neck-string/lanyard, Indication LED |
| Color | White |
| Dimensions | 42.3 x 31 x 11.6 mm |
| Protection Class | IP54 |
| Weight | 18g |
| BLUETOOTH RADIO | |
|---|---|
| Type | Bluetooth Low Energy 5.x |
| Advertisement | iBeacon, Eddystone (UID & TLM), sBeacon (Sentrax Proprietary) |
| Advertisement Interval | 100ms to 1s |
| Frequency | 2.4GHz |
| Transmit Power | +4 dBm to-12 dBm |
| Antenna Type | PCB antenna, Omni-Directional |
| OPERATING ENVIRONMENT | |
|---|---|
| Temperature Range | -20°C to +60°C |
| Operating Humidity | 0% ~ 95% |
| CERTIFICATIONS |
|---|
| FCC & CE |
| BATTERY | |
|---|---|
| Battery Type | CR2032 x1, 220mAh, Replaceable |
| Battery Life: | |
| (Advertisement Rate) | (Battery Life) |
| 1000ms | 8 months |
| 500ms | 6 months |
| Sentrax Device Manager App | |
|---|---|
With the Sentrax Device Manager (SDM) Application user can scan for nearby configurable PINIX beacons, view their battery status and modify the settings. The configuration of beacons is a password protected with a four (4) digit user settable PIN. s an added safety feature, the beacons can only be configured within a period of 15 minutes after installing the batteries or can be manually triggered into configuration mode by pressing the reset button on the Tag. However, this time duration can be increased through the settings to up to 3 weeks or forever. |
 |
Applications & Use Cases
Real-Time Indoor Positioning
Enable reliable indoor positioning and real-time location monitoring of person, patients, visitors, and contractors across healthcare facilities, corporate offices, educational institutions, and high-security environments.
Response & Safety Emergency Monitoring
Improve emergency preparedness by enabling rapid person location identification and evacuation management during critical incidents and emergency situations.
Exhibition & Event Management
Track attendee movement, monitor visitor engagement, and streamline event operations using wearable BLE beacons for exhibitions, conferences, trade shows, and large-scale events.
Visitor & Contractor Management
Enhance visibility of visitors, contractors, and temporary staff within corporate campuses, industrial facilities, hospitals, and restricted-access environments.
Healthcare Patient Monitoring
Support patient flow monitoring, visitor management, and operational efficiency within hospitals, clinics, senior care facilities, and healthcare campuses.
Education & Campus Management
Enhance campus safety and operational efficiency with real-time tracking of students, faculty, staff, and visitors. Support attendance, visitor management, and emergency response.
PINIX TEK-1
Enable reliable real-time positioning, emergency response, and person positioning with the lightweight PINIX TEK-1 wearable beacon Tag.
