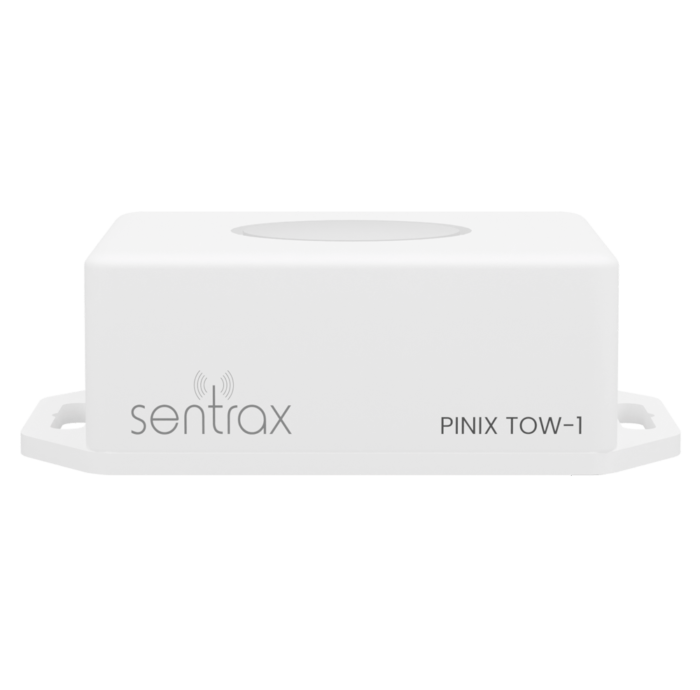

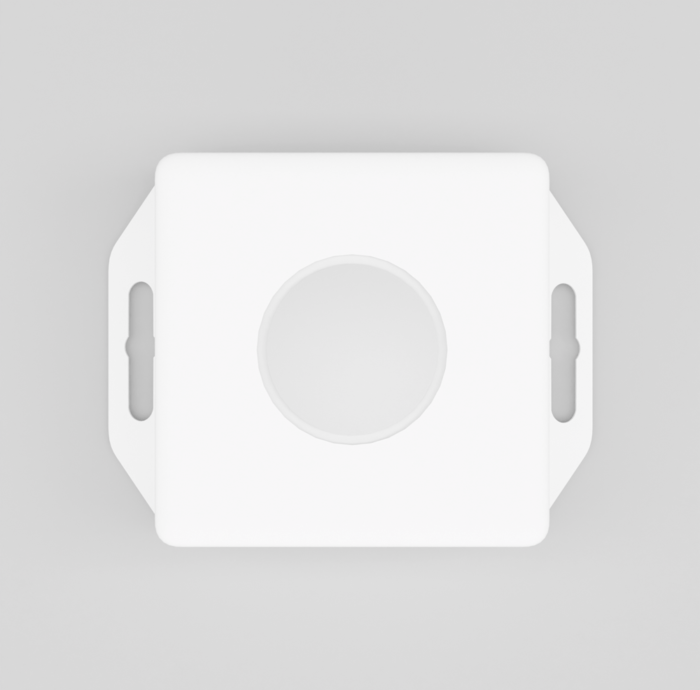

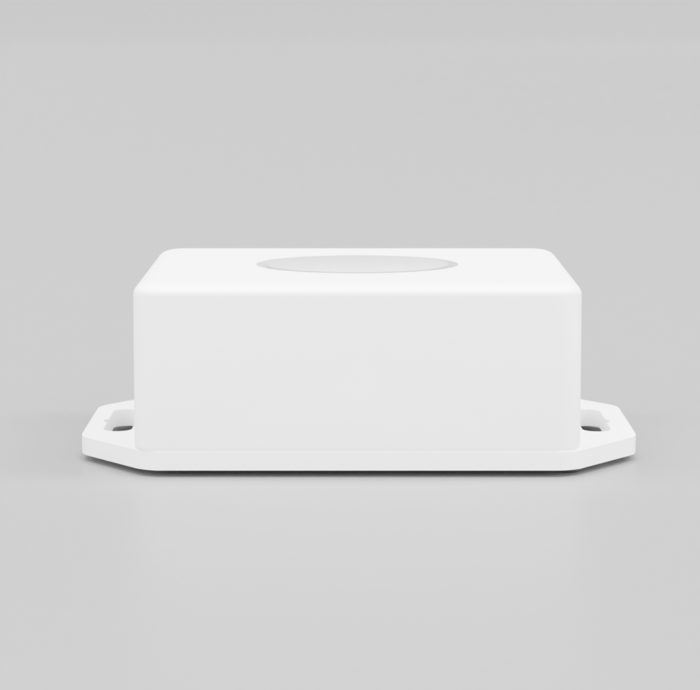

PINIX TOW-1
PINIX TOW-1
Asset BLE Tag with MEMs w/ AOA Support
Description
The PINIX line is a series of advanced Bluetooth Low Energy 5.x devices using multi standard beacon technology. The PINIX TOW-1 is a BLE Angle of Arrival (AoA) Tag which is specially conceived for advanced business solutions using location based and asset tracking based applications. It features an ultra-low power consumption and long battery life. The PINIX TOW-1 can be easily mounted on various surfaces and uses commercially available replaceable button cells.
The PINIX TOW-1 comes with a downloadable SDK with an extensive library for easy integration into a wide range of location based and indoor navigation-based applications. It also includes a wide range tool facilitating optimal setup and installation.
Applications
Features
Asset BLE 5.1 AoA Beacon for precision tracking of equipment and wares with replaceable 1Ah Lithium battery (up to 3 Years battery life), with accelerometer, button, LED, IP65 protection
| Enclosure | |
|---|---|
|
Material |
ABS |
|
Accessories |
Double Sided Tape, Mounting Screw |
|
Color |
Beige |
|

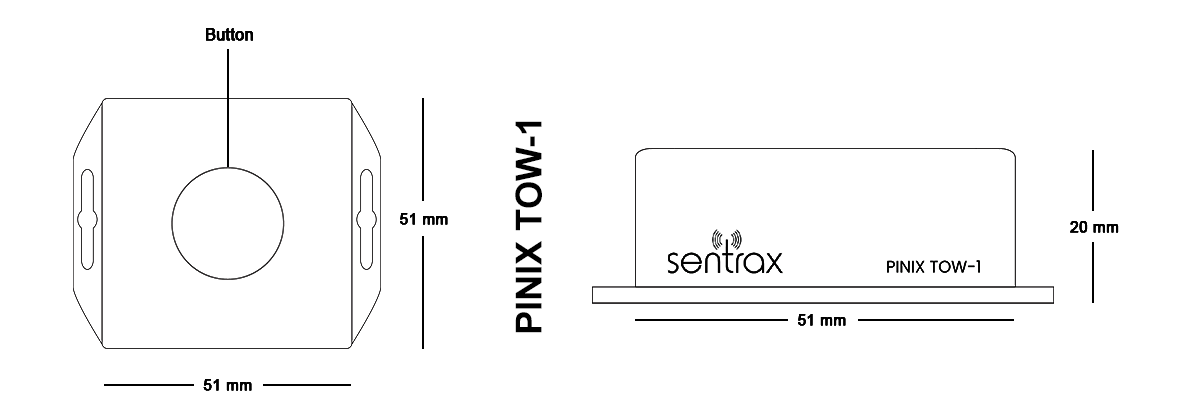

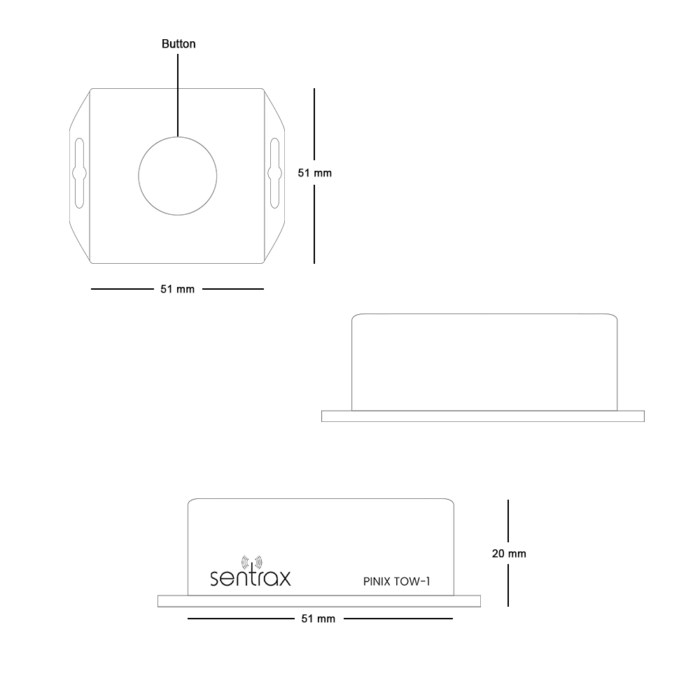

Dimensions |
51 mm x 51 mm x 20 mm |
|
Protection Class |
IP65 |
|
Weight |
45g |
| Bluetooth Radio | |
|---|---|
|
Type |
Bluetooth Low energy 5.1 (AoA) |
|
Advertisement |
iBeacon, Eddystone (UID & TLM), sBeacon (Sentrax Proprietary) |
|
Advertisement interval |
100ms to 10 seconds |
|
Frequency |
2.4GHz |
|
Transmit Power |
+4dBm to -20 dBm |
|
Antenna Type |
Chip antenna, Omni Directional
|
| Sensors and Interfaces | |
|---|---|
|
Motion sensing |
3 Axis Accelerometer |
|
Button |
1 user interact-able button |
|
LED |
1 Red LED |
|
Pressure sensing |
0.3 - 1.2 bar (Enhanced) |
|
Humidity sensing |
0 - 100 %RH (Enhanced) |
|
Temperature |
Internal Temperature Sensor |
| Battery | |
|---|---|
|
Battery Type |
CR2477 x 1, 1000mAh, Replaceable CR2477 x 1, 2000mAh, Replaceable (Optional *) |
|
Battery Life: |
|
|
(Advertisement Rate) |
(Battery Life) |
|
500ms |
1 Year 11 months |
|
5000ms |
2 Years 9 months |
| Operating Environment | |
|---|---|
|
Temperature Range |
-30°C to 85°C |
|
Operating Humidity |
90% |
| Certifications |
|---|
|
CE**, FCC** |

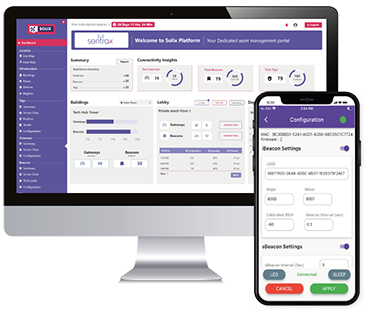

Sentrax Device Manager
With the Sentrax Device Manager (SDM) you can scan for nearby configurable PINIX beacons, display their battery status, view their ettings and make modifications to those settings. Configuration of beacons are password protected with a four (4) digit user settable PIN.
As an added safety feature, the beacons can only be configured with in a period of 15 minutes after installing the batteries or can be manually triggered into configuration mode by pressing the reset button on the Tag. However, this time duration can be increased through the settings to up to 3 weeks or forever.
1. By incorporating an optional cell battery, the lifespan can be extended by 4 to 12 months, depending on the advertising frequency.
2.**Pending
