ZENIX LEN-2
ZENIX LEN-2
Indoor BLE Locator & Gateway
Description

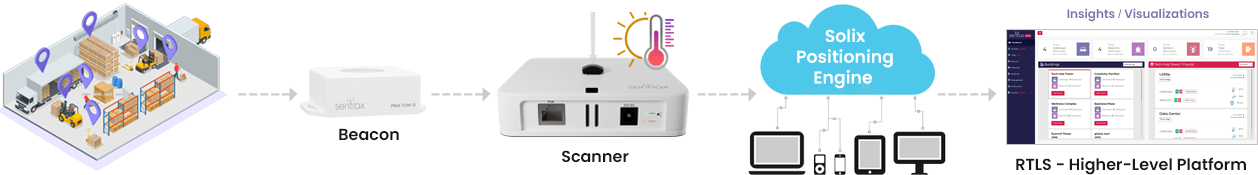

ZENIX represents a series of cutting-edge locator and gateway systems, leveraging advanced IoT hardware and software platforms to facilitate sensing and communication across Smart Building, Healthcare, and Industrial sectors. The ZENIX LEN-2 is specifically designed to collect data through beacon scanning, offering real-time sensor data and position information for beacons within its proximity.
Operating as a BLE Scanner Locator with POE and Wi-Fi interfaces, the ZENIX LEN-2 scans beacons using its external antenna to gather data. It delivers real-time sensor data and position information for nearby beacons, with the external antenna extending the indoor range.

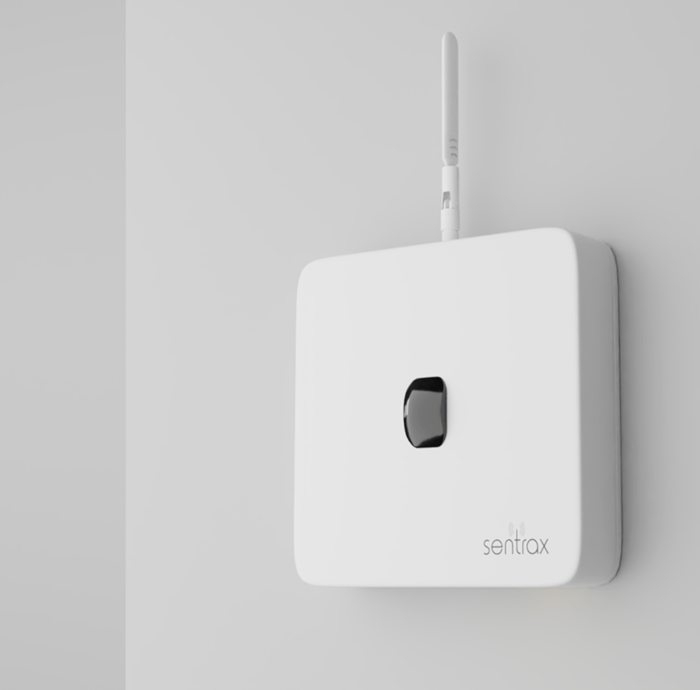

Powered by an embedded processor equipped with Sentrax’s advanced BLE scanning firmware, the ZENIX LEN-2 ensures high-performance scanning capabilities. Additionally, it features an effortless wall/ceiling mount system for convenient installation.
Applications
Features
BLE Scanner Locator, POE, WiFi, Embedded ARM processor, optional external antenna for extended range, wall mount, indoor casing
| Enclosure | |
|---|---|
|
Material |
ABS |
|
Type |
BLE 5.1 Scanner
|
|
Accessories |
Wall/Celling Mount****
|
|
Color |
Off-White |
|

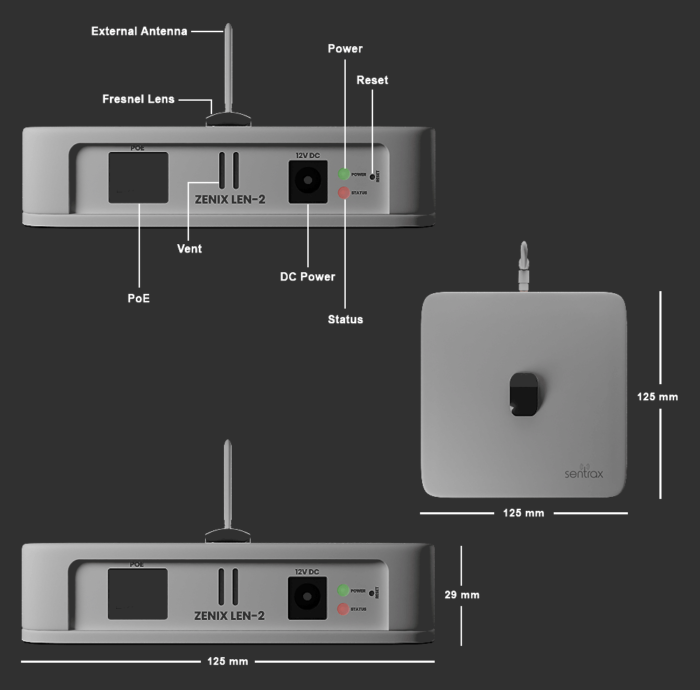

Dimensions |
125 mm x 125 mm x 29 mm
|
|
Protection Class |
IP54 |
|
Weight |
166g |
|
Antenna Type
|
Internal |
| Environment | |
|---|---|
|
Frequency |
2.4GHz |
|
SENSING |
|
|
Protocol |
BLE 5.1 |
|
Rx-Sensitivity |
-70 to -82 dBm Internal Antenna Upto -92 dBm External Antenna (Optional) |
|
Antenna |
Internal External Antenna (Optional) |
|
Range |
10-50m** |
| Features |
|---|
|
| Operating Environment | |
|---|---|
|
Temperature Range |
0°C to 60°C |
|
Operating Humidity |
90% |
| Certifications |
|---|
|
CE, FCC****
|
| Sensors and Interfaces | |
|---|---|
|
Temperature Sensing |
0 – 65°C |
|
Humidity Sensing |
0 – 100 %RH |
|
Pressure Sensing |
0.3 – 1.2 bar |
|
Light Sensing |
1 – 65535 lux |
|
PIR Motion Sensing |
100° deg |
|
TVOC Sensing |
1 – 500 VOC Point |
|
Button |
1 User button |
|
Power LED |
1 Red LED |
|
Status LED |
1 Green LED |
| Software Connectivity |
|---|
|
Sentrax’s Solix Platform, MQTT*
|
| Hardware Connectivity | |
|---|---|
|
Supply Rating |
18 Watts (12 V) |
|
Communication |
RJ45 - Ethernet (POE) WIFI - 2.4GHz b/g/n |
|
Power Options |
RJ45 - POE 802.3af DC Adapter - 12 V/1.5A |
| Accessories |
|---|
|
Configuration Portal
The ZENIX Configuration Portal is embedded web page for configuration and device settings management. With the help of this portal customers can check the status of the device, change its parameters, backup and restore it’s configuration/settings and upgrade firmware.
* Can be configured to send data on the local/clients MQTT broker
** The Rx-Sensitivity can be achieved upto -92 dBm
*** Signal propagation depends heavily on the environment conditions

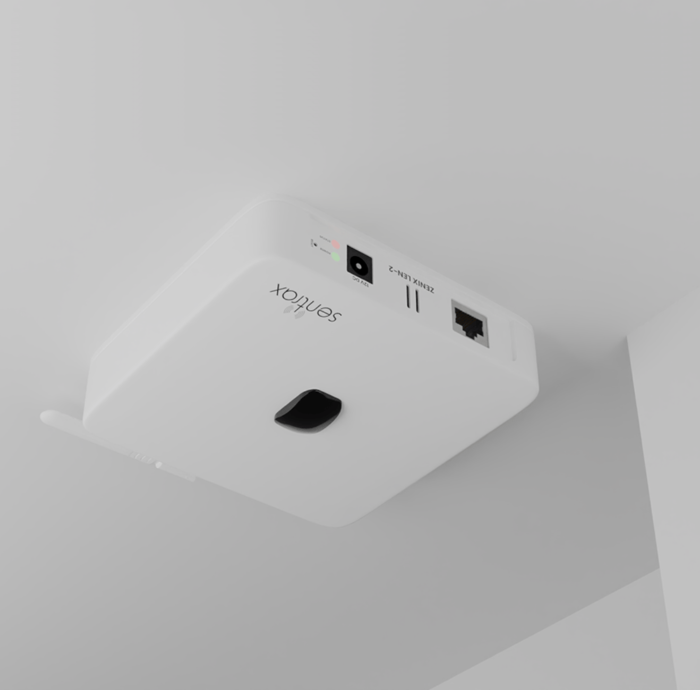

**** Ceiling mount brackets can also be provided on customer requirements
***** Pending
