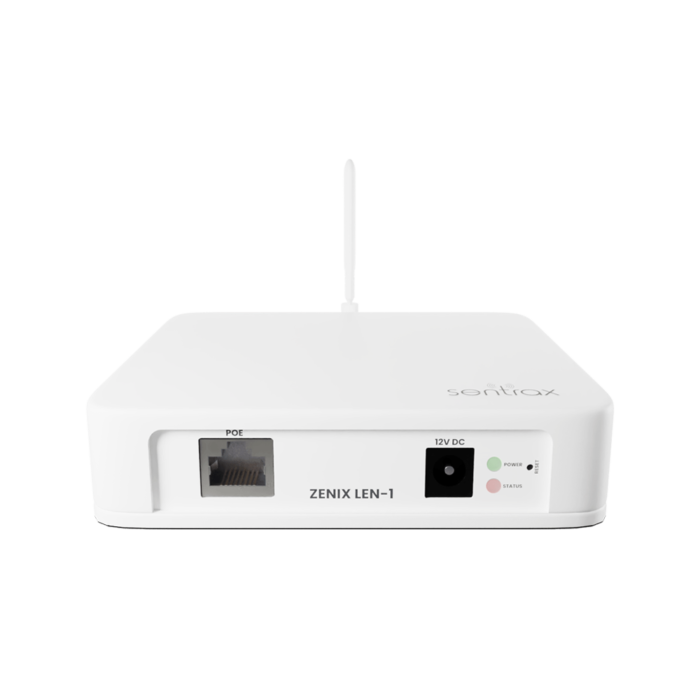

ZENIX LEN-1
ZENIX LEN-1
Indoor BLE RSSI Gateway | PoE Powered, WiFi Enabled

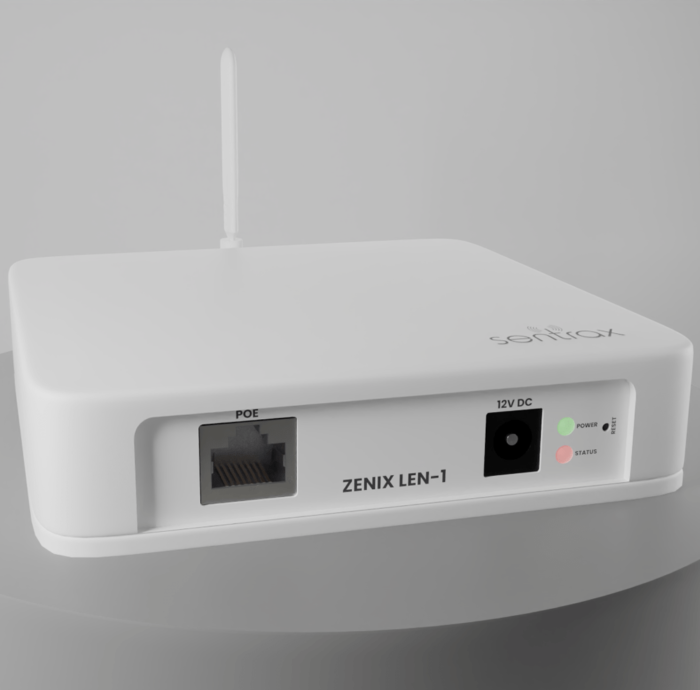

What is ZENIX LEN-1
ZENIX is a cutting-edge family of IoT locators and gateways built to power smart buildings, healthcare, and industrial applications.
The ZENIX LEN-1 is a BLE Indoor Scanner/Locator designed to help businesses gain real-time visibility of their assets and operations. With built-in PoE and Wi-Fi connectivity, it seamlessly integrates into existing environments and scans BLE beacons to deliver accurate, real-time location insights. The LEN-1 enables better tracking, improved safety, and enhanced operational efficiency, without requiring complex installation or maintenance.
It supports advanced capabilities such as Proximity BLE tag tracking, People Positioning, and BLE Tag Health Monitoring.
Key Features & Benefits
BLE RSSI
Driven by Sentrax’s proprietary algorithm for superior signal accuracy
Real-Time Scanning
Extended Scanning Range Using An External Antenna
Easy Installation
Simplified setup and management of scanners and BLE tags
Accuracy
Real-time tracking with 3-5 meter accuracy

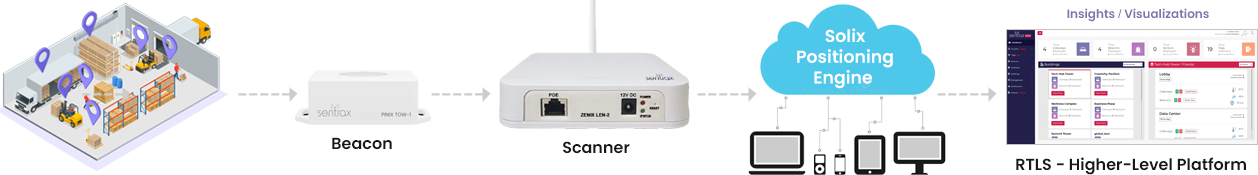

How It Works?
The ZENIX LEN-1 is a BLE Indoor Scanner Locator that enables real-time tracking and presence detection across industries, healthcare, and smart buildings, offering reliable performance and easy installation.

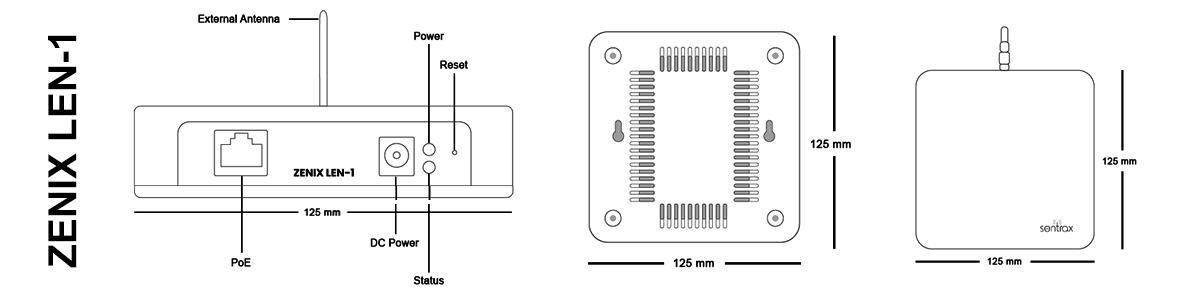

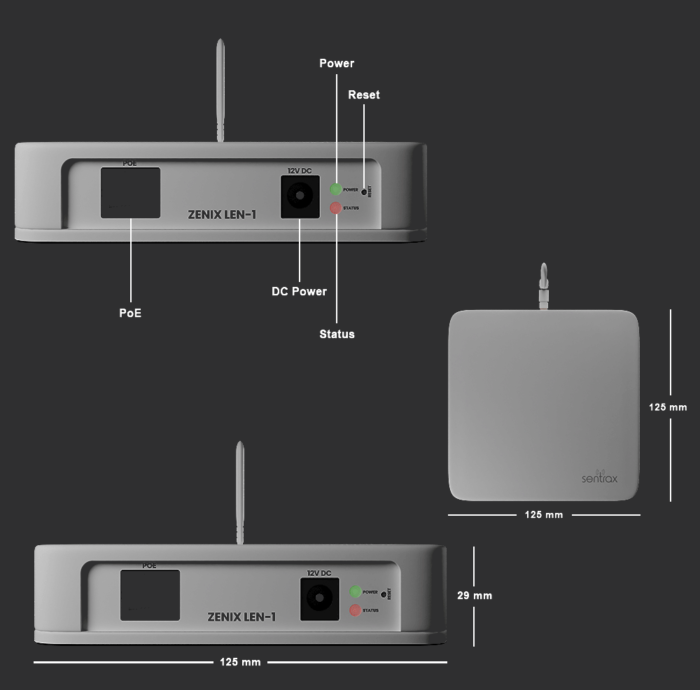

Mechanical Diagram
Technical Specifications
Download Datasheet| Enclosure | |
|---|---|
Material |
ABS |
Type |
BLE 5.1 Scanner |
Accessories |

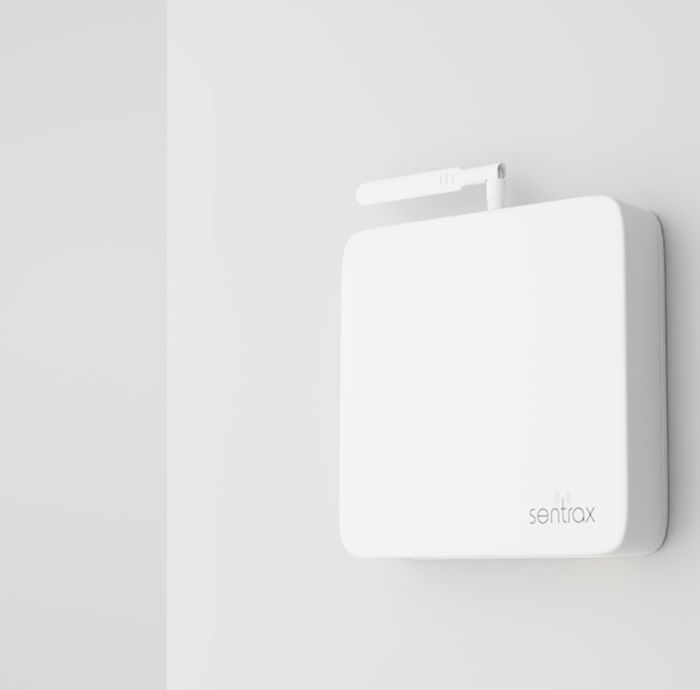

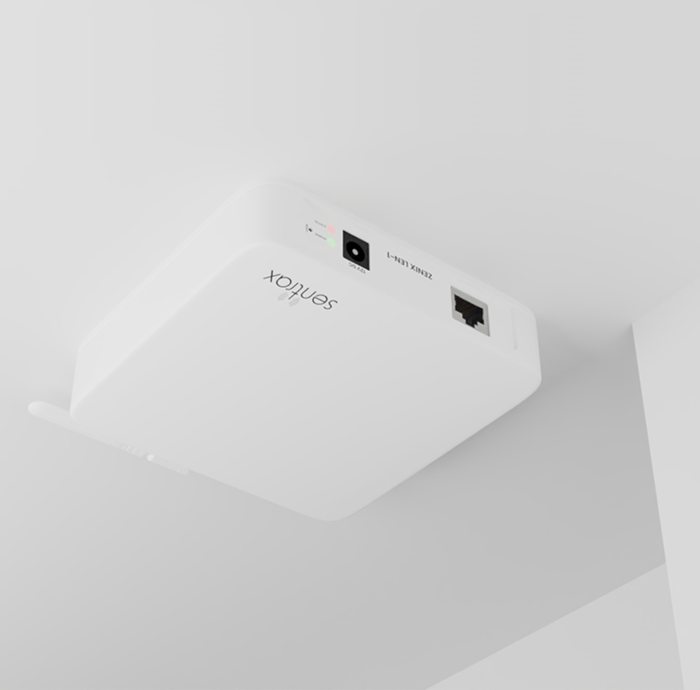

Wall/Celling Mount |
Color |
Off-White |
Dimensions |
125 mm x 125 mm x 29 mm |
Protection Class |
IP54 |
Weight |
166g |
Antenna Type |
Internal and External |
| Environment | |
|---|---|
Frequency |
2.4GHz |
SENSING | |
Protocol |
BLE 5.1 |
Rx-Sensitivity |
-70 to -82 dBm Internal Antenna Up to -92 dBm External Antenna (Optional) |
Range |
Up to 100m 2 |
Antenna |
Internal External Antenna (Optional) |
| Certifications |
|---|
CE, FCC 3 |
| Accessories |
|---|
|
2. Signal propagation depends heavily on the environmental conditions
3. Pending
| INTERFACES | |
|---|---|
Button |
1 User Button |
Power LED |
1 Red LED |
Status LED |
1 Green LED |
| Features |
|---|
|
| Software Connectivity |
|---|
|
| Operating Environment | |
|---|---|
Temperature Range |
0°C to 60°C |
Operating Humidity |
90% |
| Hardware Connectivity | |
|---|---|
Supply Rating |
2.5 Watts |
Communication |
RJ45 – Ethernet (POE) WIFI – 2.4GHz b/g/n |
Power Options |
RJ45 – POE 802.3af DC Adapter – 12 VDC |
The ZENIX Configuration Portal is embedded web page for configuration and device settings management. With the help of this portal customers can check the status of the device, change its parameters, backup and restore it’s configuration/settings and upgrade firmware.
Applications & Use Cases
Industry-Specific Use Cases of ZENIX LEN-1 (Indoor Locator and Gateway)
Healthcare
Provides precise AoA tracking in OR/ICU, broad RSSI coverage in shared areas, and mixed-mode staff safety monitoring.
Smart Buildings
Supports sub-meter AoA tracking in dense areas, RSSI-based presence detection in offices, and geofencing for safety and workflow efficiency.
Warehouse & Logistics
ZENIX enables precise warehouse tracking with AoA for equipment, RSSI coverage indoors and outdoors, full visibility via scanners, and automated alerts for safety and emergencies.
ZENIX LEN-1
BLE 5.1 Scanner, POE, WiFi, DC adapter, Embedded ARM processor, optional external antenna, LEDs, Reset button, wall mount, indoor casing, IP54 protection.
