BLE AoA Smart Badge with RFID for Indoor Positioning & Workforce Safety
What is PINIX TOP-6?
The PINIX TOP-6 is a Bluetooth® Low Energy (BLE) 5.x AoA smart badge with integrated RFID, purpose-built for workforce safety, indoor positioning, and secure identity management. Designed as a wearable CR80 card holder, it combines real-time location tracking with identification and access control in a single device.
The badge features a dedicated SOS button for instant emergency alerts, supported by LED indicators and an onboard buzzer for immediate user feedback. Powered by an ultra-low-power Nordic® nRF52 chipset, the PINIX TOP-6 supports multi-protocol beacon functionality and seamless integration with the Sentrax SOLIX RTLS platform. It enables geo-fenced alerts, visitor management, automated attendance, access control, and real-time personnel visibility across enterprise environments.
Key Features & Benefits
BLE AoA Positioning
Enable high-accuracy indoor positioning using Bluetooth® Low Energy 5.x Angle of Arrival (AoA) technology for reliable real-time personnel tracking.
Integrated RFID
Combine Bluetooth positioning with RFID identification to support secure access control, identity management, visitor authentication, and attendance applications.
SOS Alert System
Improve workforce safety with a dedicated panic button that instantly triggers emergency alerts, accompanied by LED and buzzer confirmation for immediate user feedback.
Multi-Protocol Beacon
Support multiple Bluetooth beacon broadcasting formats for compatibility with various BLE-based applications and indoor positioning systems.

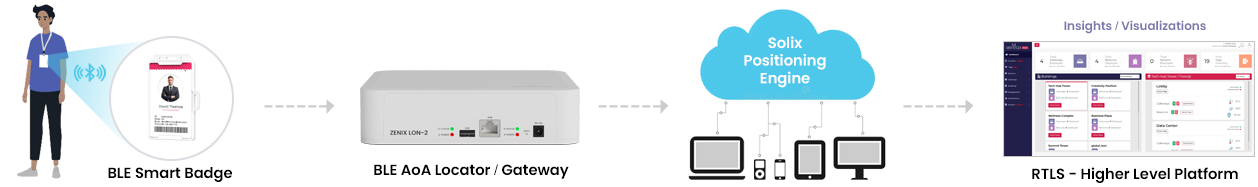

How It Works?
The PINIX TOP-6 continuously broadcasts Bluetooth Low Energy signals that are received by Sentrax ZENIX AoA Locators. The SOLIX RTLS platform processes the Angle of Arrival data to calculate accurate indoor locations in real time. Its integrated RFID enables secure identification for access control, visitor management, and attendance automation, allowing organizations to combine positioning and identity management within a single wearable badge.

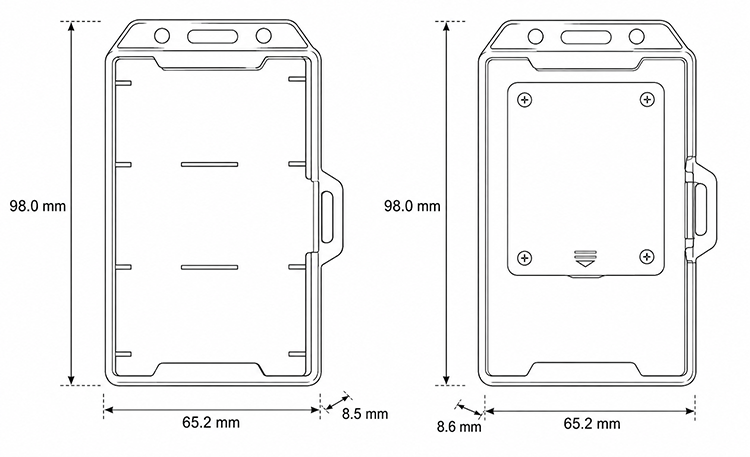

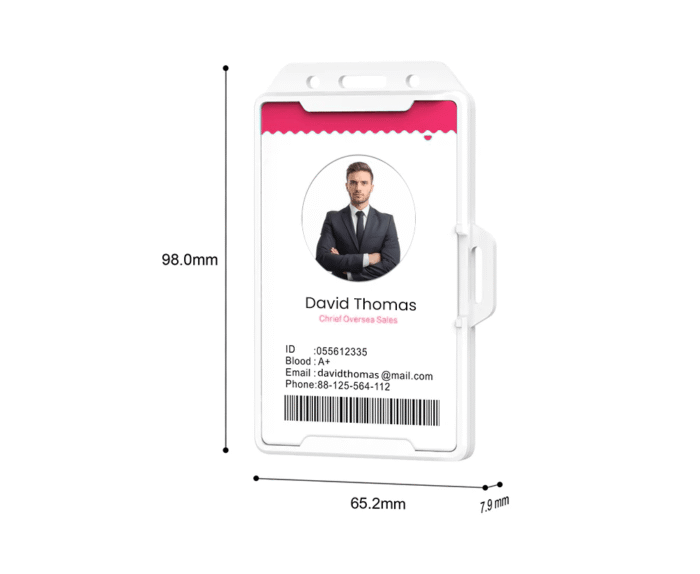

Mechanical Diagram
Technical Specifications
Download Datasheet| ENCLOSURE | |
|---|---|
| Material | PC+ABS |
| Color | White |
| Dimensions | 86.0 mm (L) x 54.0 mm (W) x 9.0 mm (H) |
| Protection Class | IP66 |
| Weight | 36g |
| BLUETOOTH RADIO | |
|---|---|
| Type | Bluetooth Low Energy 5.1 (AoA) |
| Advertisement | iBeacon, Eddystone (UID & TLM), sBeacon (Sentrax Proprietary) |
| Advertisement interval | 100ms to 10seconds |
| Frequency | 2.4GHz |
| Transmit Power | 0dBm, Adjustable |
| Antenna Type | Chip antenna, omnidirectional |
| SENSORS AND INTERFACES | |
|---|---|
| RFID/NFC | NTAG 213 |
| Motion sensing | 3-axis accelerometer |
| Buzzer | Yes |
| LED | 1 Red LED (Green optional) |
| CERTIFICATIONS |
|---|
| CE, FCC, RoHS |
| BATTERY | |
|---|---|
| Battery Type | 800mAh, non-replaceable |
| Battery Life: | |
| (Advertisement Rate) | (Battery Life) |
| 1000ms | 2 .9Years |
| 500ms | 5+ Years |
| OPERATING ENVIRONMENT | |
|---|---|
| Temperature Range | -20°C to 60°C |
| Operating Humidity (non-condensing) | 0-95% |
| OPERATIONAL FEATURES |
|---|
|
Firmware Update: OTA-enabled for seamless updates Power Saving mode: Configurable active/sleep mode via OTA for optimized battery consumption Smart Advertising: Adaptive advertisement rates triggered by motion |
| Sentrax Device Manager (SDM) | |
|---|---|
The Sentrax Device Manager (SDM) app allows you to manage PINIX beacons. You can discover nearby beacons, check their battery levels, view their current settings, and modify them with a protected 4-digit settable PIN. For security, beacons can only be configured within 15 minutes of a new battery installation or by manually activating configuration mode. Using advanced settings, the configuration window can be extended to up to three weeks. |
 |
Applications & Use Cases
Accurate Positioning & Secure Identification
Combine BLE AoA positioning and RFID technology to improve workforce visibility, access control, visitor management, and attendance automation.
Workforce Safety & Emergency Response
Enable rapid emergency response through the built-in SOS button, allowing employees to instantly request assistance in healthcare facilities, industrial sites, construction projects, and high-risk workplaces.
Real-Time Person Positioning
Track employees in real time with BLE AoA positioning to improve operational visibility, worker safety, and workforce coordination inside buildings.
Visitor Management & Access Control
Simplify visitor identification and secure facility access using integrated RFID alongside real-time BLE positioning for enhanced security and compliance.
Automated Attendance
Automatically record employee entry and exit events using BLE and RFID identification, reducing manual attendance processes while improving workforce efficiency.
