PINIX TEN-2
PINIX TEN-2
Indoor Anchor BLE Beacon Tag with Multi-Sensors
Description
The PINIX line is a series of advanced Bluetooth Low Energy 5.x beacon devices using multi standard beacon technology. The PINIX TEN-2 is specially conceived for advanced business solutions using location based and indoor navigation based applications. It features an ultra-low power consumption and long battery life. The PINIX TEN-2 can be easily mounted on various surfaces and uses commercially available replaceable large capacity battery.
The PINIX TEN-2 comes with a downloadable SDK with an extensive library for easy integration into a wide range of location based and indoor navigation based applications. It also includes a wide range tools facilitating optimal setup, installation and health-checks.
Applications
Features
Indoor BLE 5.0 Beacon for Positioning & Navigation, replaceable high capacity 4800mAh Lithium battery (6-12 Years battery life), Accelerometer, LED, Button, IP54 protection
| Bluetooth Radio | |
|---|---|
|
Type |
Bluetooth Low energy 5.0 |
|
Advertisement |
iBeacon, Eddystone (UID & TLM), sBeacon (Sentrax Proprietary) |
|
Advertisement interval |
100ms to 10.2seconds |
|
Frequency |
2.4GHz |
|
Transmit Power |
+4dBm to -20 dBm |
|
Antenna Type |
PCB antenna, Omni Directional |
| Sensors and Interfaces | |
|---|---|
|
Motion sensing |
3 Axis Accelerometer (optional) |
|
Temperature |
Internal Temperature Sensor |
|
Button |
1 user interact-able button |
|
LED |
1 Red LED |
| Enclosure | |
|---|---|
|
Material |
ABS |
|
Accessories |
Double sided tape, Mounting Screw |
|
Color |
White |
|

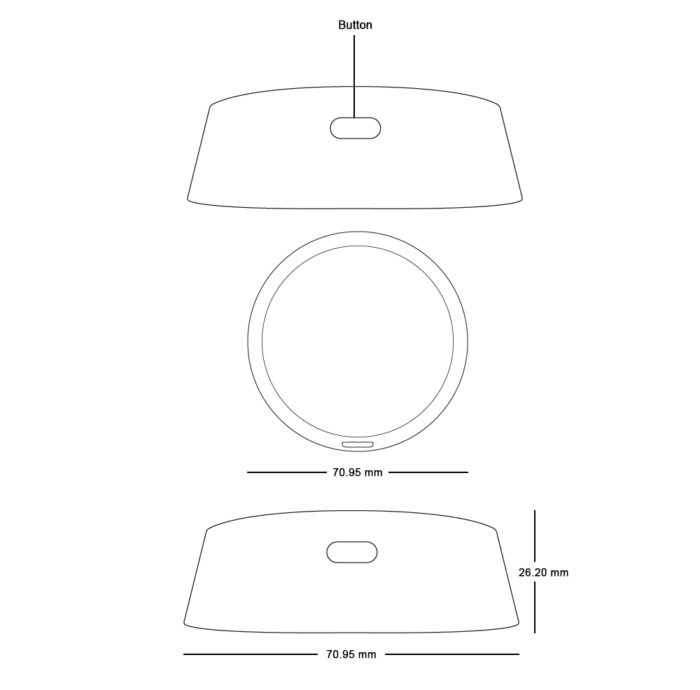

Dimensions |
70.95 mm (Dia) x 26.20 mm (H) |
|
Protection Class |
IP54 |
|
Weight |
72g |
1. Assuming that the beacon will be non connectable and non scannable for these features with accelerometer enabled otherwise life will decrease further.
| Battery | |
|---|---|
|
Battery Type |
ER14505 x 2, 4800mAh, Replaceable |
|
Battery Life: |
|
|
(Advertisement Rate) |
(Battery Life 1) |
|
High 200ms |
6 years 2 months |
|
Medium 500ms |
9 years 10 months |
|
Low 1000ms |
12 years 2 months |
| Operating Environment | |
|---|---|
|
Temperature Range |
-20°C to 70°C |
|
Operating Humidity |
90% |
| Certifications |
|---|
|
CF, FCC |
Sentrax Device Manager
With the Sentrax Device Manager (SDM) you can scan for nearby configurable PINIX beacons, display their battery status, view their ettings and make modifications to those settings. Configuration of beacons are password protected with a four (4) digit user settable PIN.
As an added safety feature, the beacons can only be configured with in a period of 15 minutes after installing the batteries or can be manually triggered into configuration mode by pressing the reset button on the Tag. However, this time duration can be increased through the settings to up to 3 weeks or forever.
