PINIX TOB-1
PINIX TOB-1
BLE AoA Wearable Beacon Tag with SoS Button and Accelerometer
What is PINIX TOB-1?
The PINIX TOB-1 is a Bluetooth® Low Energy 5.x wearable beacon tag designed for accurate indoor positioning, personnel safety, vulnerable tracking, and emergency response across healthcare, industrial, enterprise, and high-security environments. Powered by the Nordic nRF52 chipset, it supports BLE AoA, multiple Bluetooth advertising protocols, an integrated SOS emergency button, an IP67-rated enclosure, a replaceable CR2032 battery, and a built-in accelerometer for reliable real-time people location monitoring.
Key Features & Benefits
BLE AoA Positioning
Enables precise indoor positioning for reliable real-time location monitoring across complex indoor environments.
Integrated SoS Button
Provides immediate emergency assistance by allowing users to trigger instant distress alerts during critical situations.
CR2032 Battery Replaceable
Equipped with a replaceable 220mAh coin-cell battery for continuous operation and easy battery replacement.
IP67 Rugged Wearable Design
Combines an IP67-rated enclosure and integrated accelerometer for dependable performance in demanding working environments.

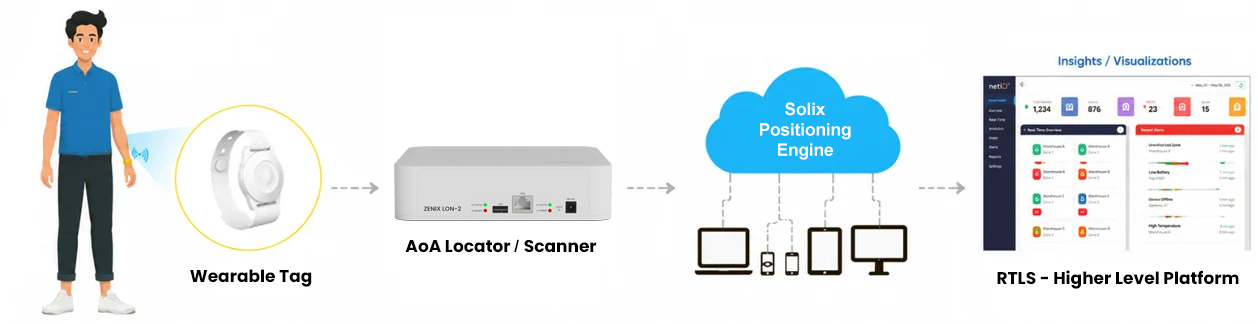

How It Works?
The PINIX TOB-1 Wearable tag broadcasts BLE signals to Sentrax AoA scanners, which process them through the RTLS platform to deliver precise indoor person positioning and emergency response.

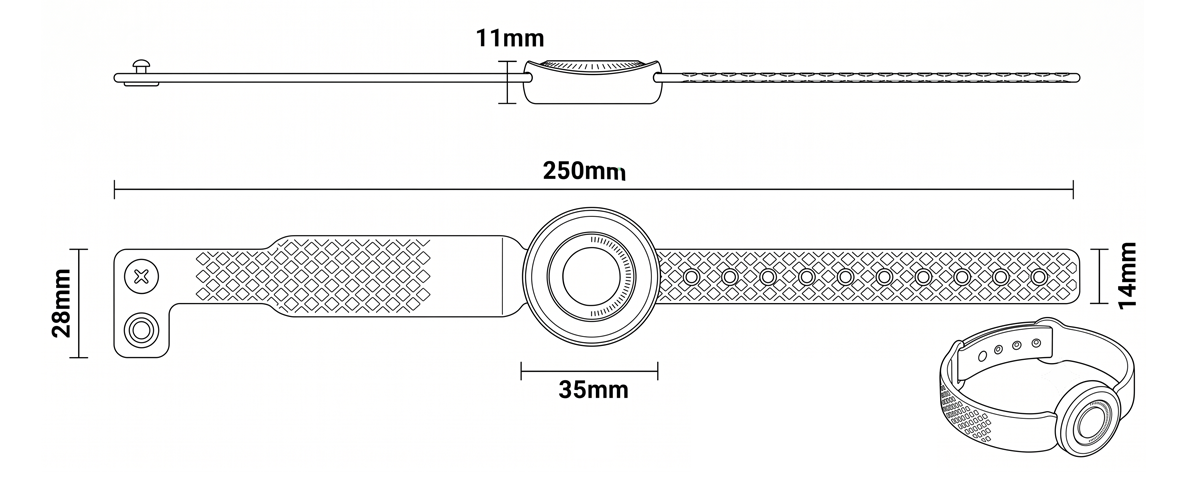

Mechanical Diagram
Technical Specifications
Download Datasheet| ENCLOSURE | |
|---|---|
| Material | ABS |
| Accessories | Detachable wristband strap |
| Color | White |
| Dimensions | D36×11mm |
| Protection Class | IP67 |
| Weight | 12g |
| BLUETOOTH RADIO | |
|---|---|
| Type | Bluetooth Low Energy 5.x |
| Advertisement | iBeacon, Eddystone (UID & TLM), sBeacon (Sentrax Proprietary) |
| Advertisement interval | 100ms to 1s |
| Frequency | 2.4GHz |
| Transmit Power | +4 dBm to -12 dBm |
| Antenna Type | PCB antenna, Omni-Directional |
| BATTERY | |
|---|---|
| Battery Type | CR2032 ×1, 220mAh, Replaceable |
| Battery Life: | |
| (Advertisement Rate) | (Battery Life) |
| 1000ms | 6 months |
| 500ms | 4 months |
| OPERATING ENVIRONMENT | |
|---|---|
| Temperature Range | -20°C to +60°C |
| Operating Humidity | 0% ~ 95% |
| CERTIFICATIONS |
|---|
| FCC & CE |
| SENSORS AND INTERFACES | |
|---|---|
| 3-axis Accelerometer User Intractable Button Indication LED |
| Sentrax Device Manager App | |
|---|---|
With the Sentrax Device Manager (SDM) Application user can scan for nearby configurable PINIX beacons, view their battery status and modify the settings. The configuration of beacons is a password protected with a four (4) digit user settable PIN. s an added safety feature, the beacons can only be configured within a period of 15 minutes after installing the batteries or can be manually triggered into configuration mode by pressing the reset button on the Tag. However, this time duration can be increased through the settings to up to 3 weeks or forever. |
 |
Applications & Use Cases
The PINIX TOB-1 is designed for applications requiring accurate indoor people positioning, emergency response, and personnel safety. Its BLE AoA technology, integrated SoS button, and wearable design make it ideal for real-time location monitoring across healthcare, industrial, enterprise, and high-security environments.
Indoor Localization
Enable precise real-time indoor person positioning to improve operational visibility, workforce coordination, and location-based services across complex facilities.
Emergency Rescue & Personnel Safety
Enable workers to instantly trigger emergency alerts using the integrated SoS button, helping teams respond faster during critical incidents.
Location-Based Services
Support location-aware applications by providing accurate positioning data for navigation, monitoring, and operational decision-making within indoor environments.
Healthcare Safety
Enable real-time positioning of patients, vulnerable individuals, and mother–child pairs in healthcare environments, with an integrated SOS button for instant emergency alerts and improved safety response.
Restricted Zone Access & Geofencing
Create virtual zones and instantly detect when personnel enter or exit restricted areas. Improve workplace safety, security compliance, and real-time monitoring across industrial plants, laboratories, and high-security facilities.
Attendance & Workforce Analytics
Automatically record person presence, working hours, and movement patterns to improve workforce utilization, optimize operations, and simplify attendance management.
PINIX TOB-1
Enhance personnel safety and emergency response with the PINIX TOB-1 wearable beacon, delivering precise BLE AoA indoor positioning for real-time location monitoring.
