Description

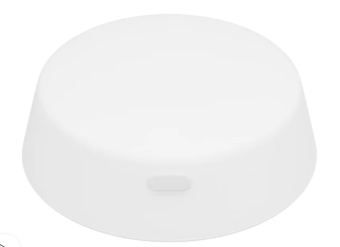

The PINIX TEN-2 is an advanced BLE 5.x beacon designed for location-based and indoor navigation applications. Built with multi-standard technology, it offers ultra-low power consumption, long battery life, and easy installation on various surfaces using a high-capacity replaceable battery.
It includes a downloadable SDK with a comprehensive library for seamless integration, along with tools that simplify setup and deployment.
Features
Indoor BLE 5.x Beacon for Positioning & Navigation, replaceable high-capacity 4800mAh Lithium battery (7-8 Years battery life), accelerometer, LED, Button, IP54 protection
| Bluetooth Radio | |
|---|---|
|
Type |
Bluetooth Low energy 5.x |
|
Advertisement |
iBeacon, Eddystone (UID & TLM), sBeacon (Sentrax Proprietary) |
|
Advertisement interval |
100ms to 10.2seconds |
|
Frequency |
2.4GHz |
|
Transmit Power |
+4dBm to -20 dBm |
|
Antenna Type |
PCB antenna, Omni Directional |
| Sensors and Interfaces | |
|---|---|
|
Motion sensing |
3 Axis Accelerometer (optional) |
|
Temperature |
Internal Temperature Sensor |
|
Button |
1 user interact-able button |
|
LED |
1 Red LED |
| Enclosure | |
|---|---|
|
Material |
ABS |
|
Accessories |
Double sided tape, Mounting Screw |
|
Color |
White |
|
Dimensions |
70.95 mm (Dia) x 26.20 mm (H) |
|
Protection Class |
IP54 |
|
Weight |
72g |
Assuming that the beacon will be non-connectable and non-scannable for these features with accelerometer enabled otherwise life will decrease further.
| Battery | |
|---|---|
|
Battery Type |
ER14505 x 2, 4800mAh, Replaceable |
|
Battery Life: |
|
|
(Advertisement Rate) |
(Battery Life 1) |
|
500ms |
7 Years, 2 Months |
|
1000ms |
8 Years, 8 Months |
| Operating Environment | |
|---|---|
|
Temperature Range |
-20°C to 70°C |
|
Operating Humidity |
90% |
| Certifications |
|---|
|
CE |
Sentrax Device Manager
With the Sentrax Device Manager (SDM), you can scan nearby PINIX beacons, check battery status, view settings, and update configurations. All beacon settings are protected with a user-settable 4-digit PIN.
Beacons can be configured for 15 minutes after battery installation or manually via the reset button. This window can be extended up to 3 weeks or more through settings.
