1. Prerequisites #
- Make sure that the phone’s location and Bluetooth is on
- Make sure android version is greater than 4 and iOS version is greater and equal to 11
- Make sure Devices (AoA beacons) are in connectable state.
- Make sure AoA beacons are only supported in Android version 5 to 9
2. SDM Overview #
Sentrax Device Manager (SDM) Overview: #
Sentrax Device Manager (SDM) is a powerful application designed to simplify and enhance the management of your PINIX beacons. Whether you're using Android or iOS, SDM provides a user-friendly experience that streamlines various aspects of beacon management:
SDM 2.0 saves you valuable time and effort. Its adaptive programming sessions cater to your workflow, ensuring a seamless experience. Plus, the ability to export Beacon Configuration Reports empowers strategic decision-making. Embrace the future of control and insightful management with SDM 2.0.
2.1. Home Screen #

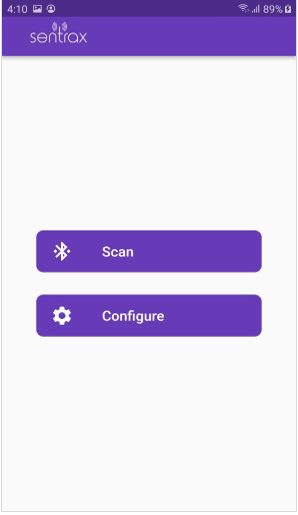

Pressing the 'Scan' button will navigate you to the beacon scanning screen, while selecting the 'Configure' button will lead you to the beacon configuration screen
Figure 1: Home Screen #
2.2. Scan Screen #
To initiate scanning, simply press the 'Scan' button

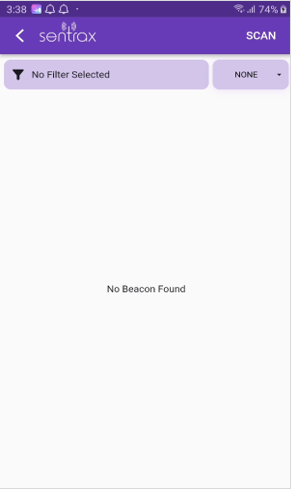

Figure 2: Scan Screen #
2.3. Beacon Information Display #
The list of beacons is displayed with detailed information including their MAC address, Major and Minor identifiers, UUID (Universally Unique Identifier), TYPE, the timestamp of their last appearance ('Last Seen'), signal strength, and battery level

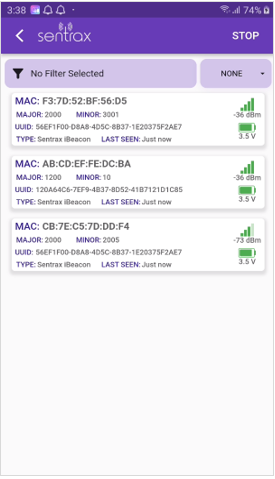

Figure 3: Beacon List #
2.4. List Sorting Options for Beacon Information #
Users have the capability to sort the list based on the following criteria: minor in ascending order, major in descending order, RSSI (received signal strength indicator) in ascending order, and RSSI in descending order.

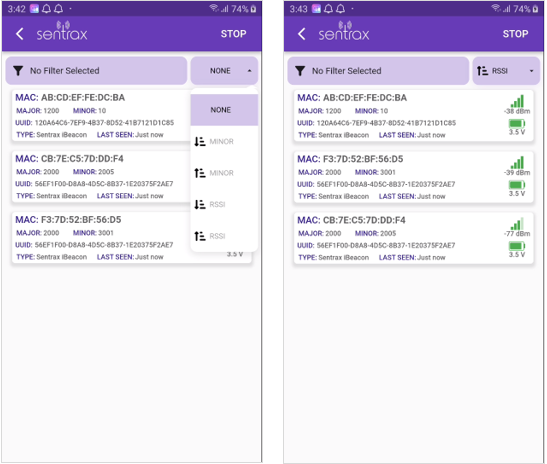

Figure 4: Sortable Beacon List Criteria #
2.5. iBeacon Field Filters #
Filtering iBeacon Fields:

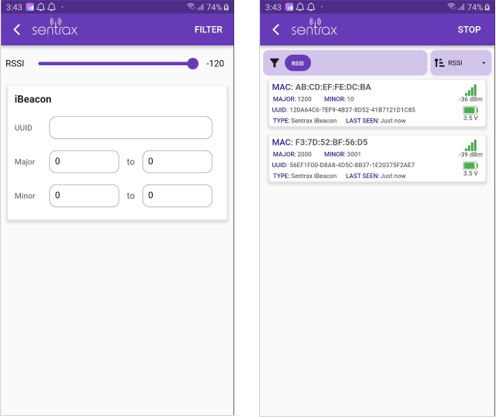

Figure 5: Filtering beacon #
2.6. Connect with Beacon #
At the point of interacting with the beacon, the user is prompted to input a password, which, for demonstration purposes, is set to '5285

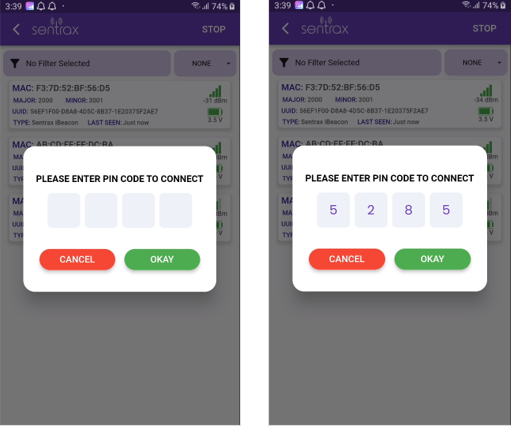

Figure 6: Connect with beacon #
2.7. Beacon Configuration Screen #
After successfully entering the correct password, the user is directed to the Configuration Screen

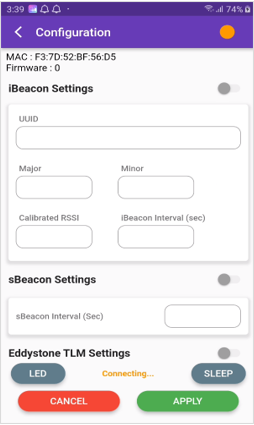

Figure 7: Beacon Configuration #
2.8. Beacon Configuration Parameters #
After establishing a successful connection, the status changes to 'Connected.' At this point, the user gains access to the current configuration settings applied to the Beacon. Users have the ability to perform the following actions:
- Test LED
- Activate Sleep Mode for the Beacon
- Apply New Configuration Changes to the Beacon

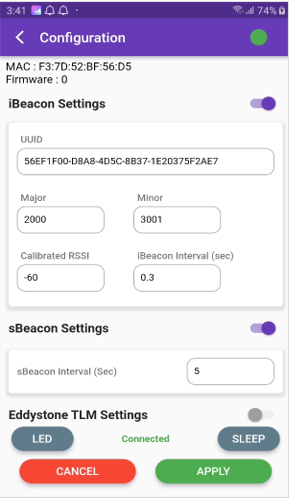

Figure 8: Post-Connection Actions: Testing, Sleep Mode, and Configuration Changes #
2.9. Bulk Configuration Screen #
On the Bulk Configuration Screen, users have the following capabilities:
- Scan beacons to save their configuration in a CSV file.
- Program beacons to apply configurations from a CSV file.

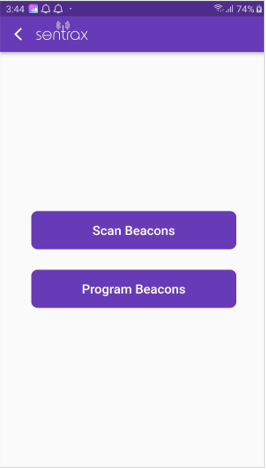

Figure 9: List of Floors page #
2.10. Bulk Scan Screen #
To initiate the scanning process for beacons, the user can simply tap the 'Scan' button.

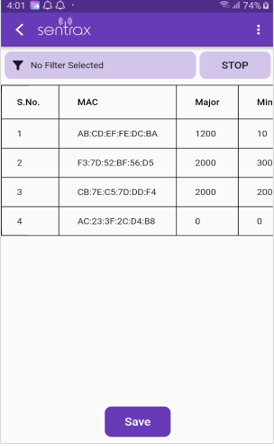

Figure 10: Beacon Scanning Initiation #

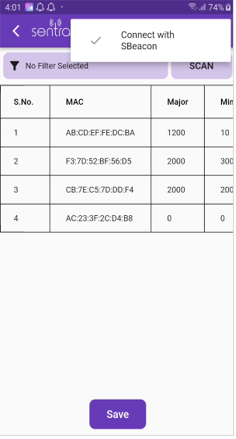

2.11. Connect with SBeacon #
When the user taps on the 'More' buttons, a checkbox option becomes visible. Here's how it functions:
- If the checkbox is selected and the beacon is connectable, all configurations will be read from the beacons after establishing a connection.
- If the checkbox is unselected or the beacon is non-connectable, iBeacon configurations will be read from the beacons without the need to establish a connection.
2.12. File Storage Location for Saved Beacon Configuration #
When the user taps the 'Save' button, all configurations of each beacon will be stored in a CSV file. This file is saved at the following location:
'Android/data/com.sentrax.device_manager/files/downloads/'

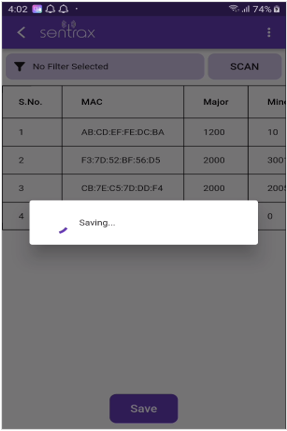

Figure 12: File Storage #
2.13. File Storage Location for Saved Beacon Configuration #
After Successful saving, a pop-up message will be displayed

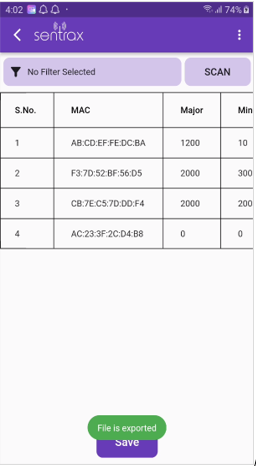

Figure 12.1: File Export #
2.14. Bulk Programming Screen #
This screen allows users to either commence a new session or resume a previous session.

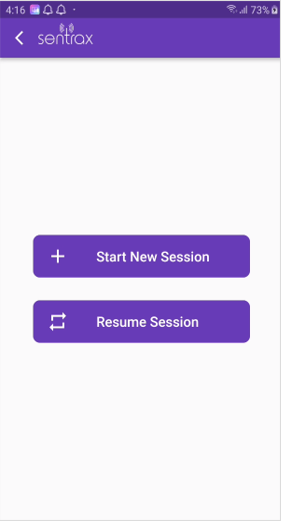

Figure 13: Bulk Programming Screen #
2.15 Start New Session #
On the New Session screen, users can select a CSV file from file system.

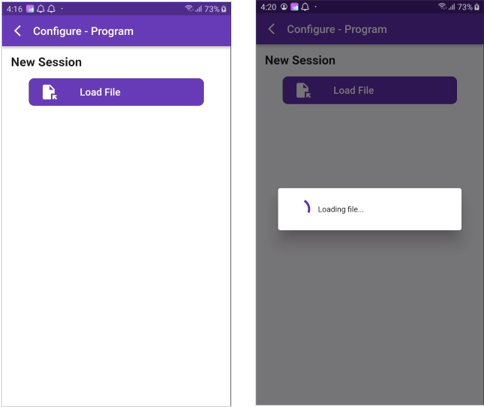

Figure 14: Start New Session #
2.16. CSV File Selection #
Choose the file that was saved from the scanning screen.

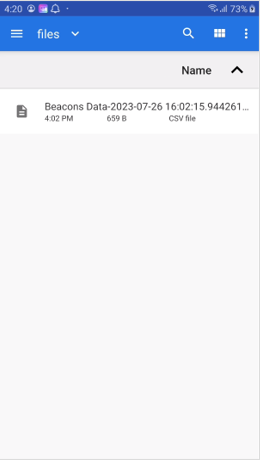

Figure 15: Select File #
2.17. Programming initiation and Summary Display #
After successfully loading the CSV file, a Summary will be displayed. If the 'Stop after each program' option is checked, programming will pause after programming each beacon. Upon tapping the 'Start' button, the app will transition to the Program Screen

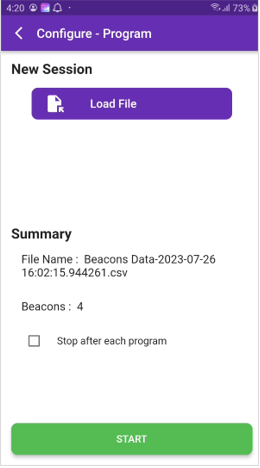

Figure 16: Summary Display #
2.18. Beacon Configuration List and Programming Status. #
All beacon configurations loaded from the CSV file will be listed. The 'Status' column indicates the current programming status of each beacon:
'L' for LEFT (to be programmed)
'P' for PROGRAMMED
'E' for ERROR during programming
'N' for NOT FOUND during programming
Users have the option to both start and stop programming beacons as needed.
If the user stops during the programming process, the current session is saved locally and can be resumed from the Resume Session Screen.
“Export” button exports the beacons’ configurations report to supported apps like WhatsApp & Gmail.

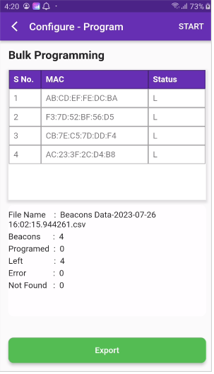

Figure 17: List of beacons with status #
2.19. Resuming Sessions #
In this section, users have the option to resume previously saved beacon programming sessions, picking up where they left off. If all beacons are successfully programmed during the session, the saved session will be automatically removed.

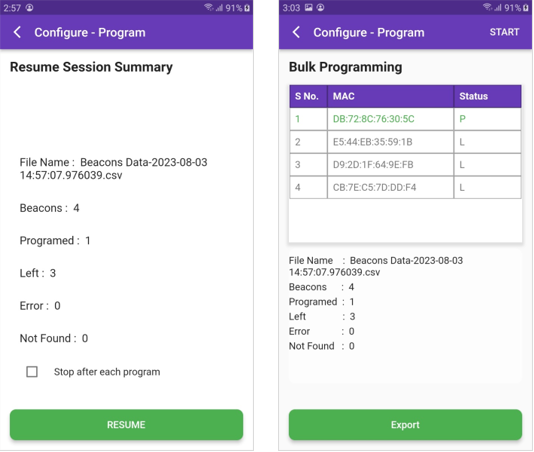

Figure 18: Resume Session #
