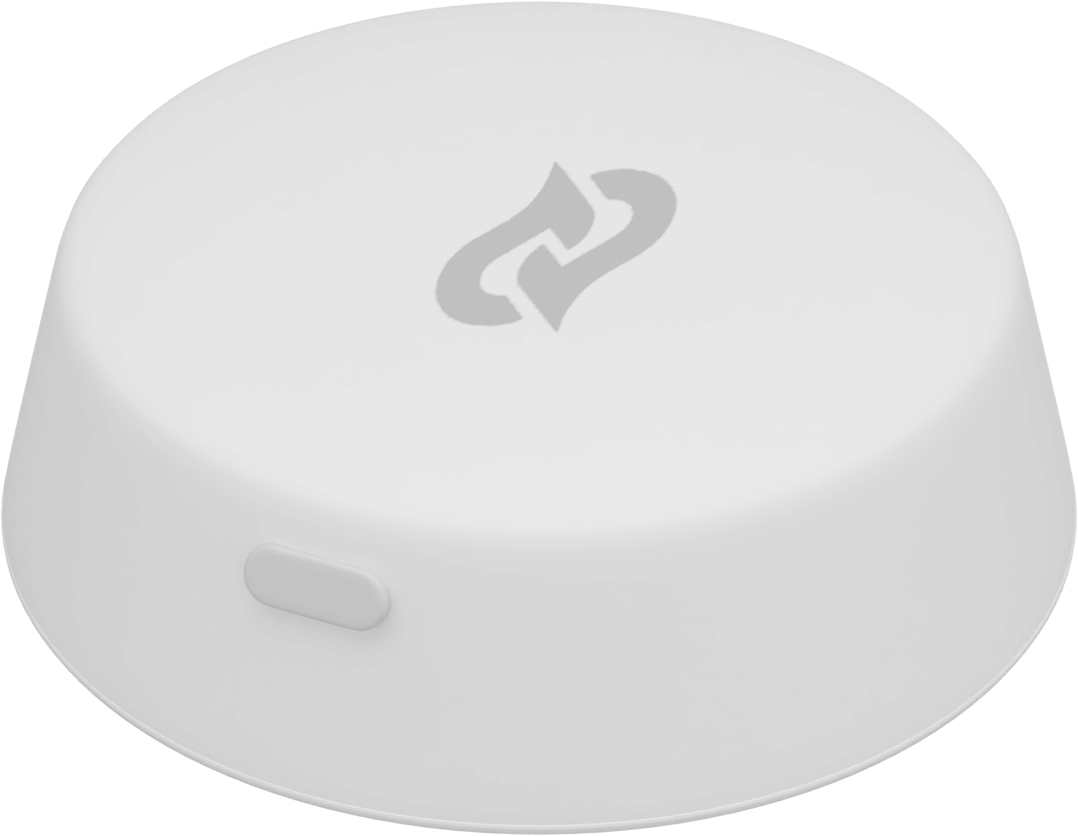

NODIX CEN-1
Device Specification
OVERVIEW
The NODIX CEN-1 is a bi-directional BLE anchor relay designed to deliver accurate room-level visibility in complex indoor environments where traditional BLE RTLS systems struggle with signal overlap and inaccurate zone detection. Designed for high density deployments, it enables precise localization without requiring one gateway per
room. It can also be deployed in passageways and gates to enhance coverage and ensure smooth, reliable tracking between zones.
With high operational reliability, simple installation, and a replaceable high-capacity battery, the NODIX CEN-1 significantly reduces deployment complexity and maintenance overhead. By minimizing the need for multiple RSSI gateways, it provides a cost-efficient and scalable RTLS architecture, making large-scale implementations both practical and sustainable. Seamless integration with existing systems and intuitive configuration tools allows for fast deployment and effortless system expansion.
Device Specifications
| BLUETOOTH RADIO | |
|---|---|
| Type | Bluetooth Low energy 5.x |
| Advertisement | iBeacon, Eddystone (UID & TLM), sBeacon (Sentrax Proprietary) |
| Advertisement interval | 100 ms to 10.2 seconds |
| Scanning interval | 1000 ms to 5 seconds |
| Frequency | 2.4GHz |
| Transmit Power | +4dBm to -20 dBm |
| Antenna Type | PCB antenna, Omni Directional |
| SENSORS AND INTERFACES | |
|---|---|
| Motion Sensing | 3 Axis Accelerometer (optional) |
| Temperature | Internal Temperature Sensor |
| Button | User interact-able button |
| LED | 1 Red LED |
| ENCLOSURE | |
|---|---|
| Material | ABS |
| Accessories | Double sided tape, Mounting Screw |
| Color | White |
| Dimensions | 70.95 mm (Dia) x 26.20 mm (H) |
| Protection Class | IP54 |
| Weight | 72g |
** Pending
| BATTERY | |
|---|---|
| Battery Type | ER14505 x 2, 4800mAh, Replaceable |
| Battery Life: | |
| 1000ms (Adv. & Scan Interval) | 1 year 1 month* |
| 5000ms (Adv. & Scan Interval)* | 2 years 2 months* |
| OPERATING ENVIRONMENT | |
|---|---|
| Temperature Range | -20°C to 70°C |
| Operating Humidity | 90% |
| CERTIFICATIONS |
|---|
| CE, FCC** |
| Sentrax Device Manager | |
|---|---|
| The Sentrax Device Manager (SDM) app allows you to manage PINIX beacons. You can discover nearby beacons, check their battery levels, and view their current settings, and modify them with a protected 4-digit settable PIN. |
 |
APPLICATION AREAS
- Indoor localization,
- Indoor navigation-based
services - Asset & person
positioning
CAUTION
Risk of Explosion if an incorrect type of battery.
Dispose of used batteries according to the instructions
Glue should be used to close the enclosure if opened by use
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means the product
must be handled in accordance with European Directive 2012/19/EU to ensure it is recycled or dismantled, minimizing its
environmental impact.
All product names, logos, and brands are the property of their respective owners. All companies, products, and service names used in this
datasheet are for identification purposes only. Use of these names, logos, and brands does not imply endorsement.
