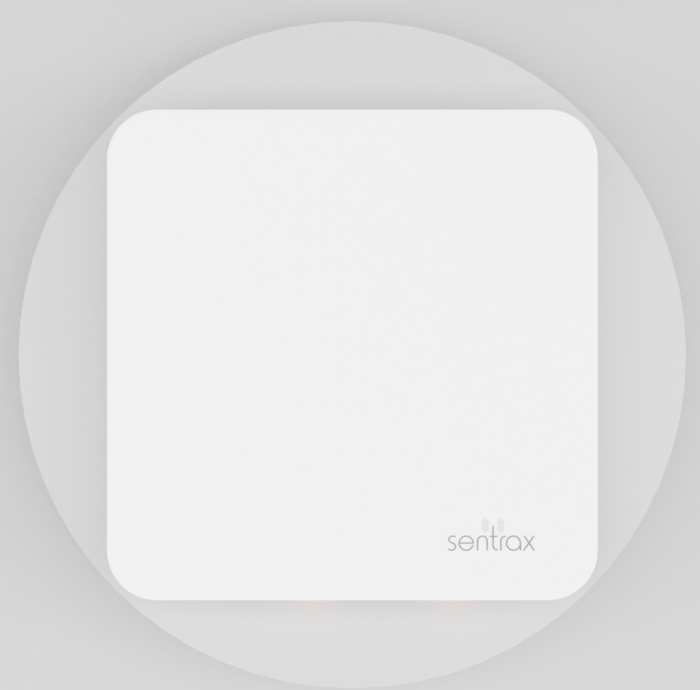

What is ZENIX LON-2

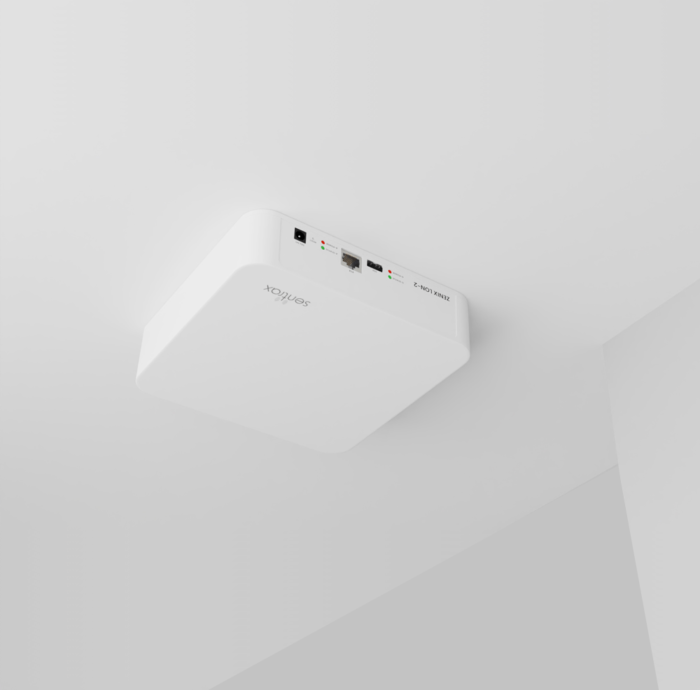

The ZENIX LON-2 is a high-precision indoor BLE (Bluetooth Low Energy) locator and gateway, built for advanced Real-Time Location Systems (RTLS) in smart buildings, healthcare, industrial, and asset-tracking environments. Leveraging Angle of Arrival (AoA) technology, it delivers sub-meter accuracy in positioning nearby tags. With its embedded processor running Sentrax’s firmware and flexible connectivity via PoE and optional Wi-Fi, the LON-2 reliably captures real-time angle and sensor data from Beacon/Tag devices. Its durable design supports easy mounting on ceilings or walls, forming the cornerstone of a highly accurate location-tracking infrastructure.
It supports advanced capabilities such as Sub-Meter Level BLE Tag Tracking, Asset Tracking, People Tracking, BLE Tags Health Check Monitoring
Key Features & Benefits
Sub-Meter Location Accuracy
Delivers highly accurate indoor positioning, typically within 0.2–0.5 meters.
Beacon / Tag PDU Extraction
Captures and decodes BLE PDU data for telemetry, identification, and sensor insights.
Remote Tag Configuration & Updates
Enables remote setup and firmware updates of connected tags for easier device management.
AoA Filtering Configuration
Supports adjustable moving-average filtering to stabilize and refine angle measurements.

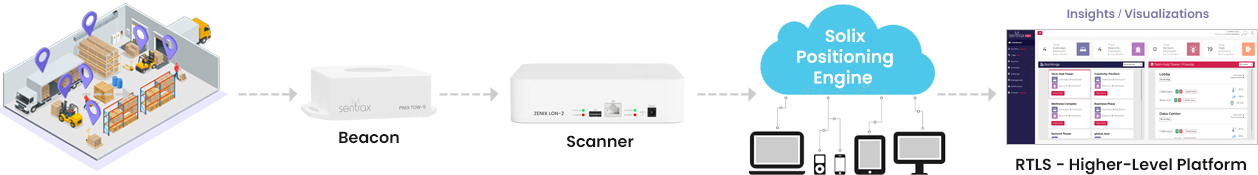

How It Works?
The ZENIX LON-2 is an AoA-enabled Indoor Locator Gateway that delivers sub-meter real-time positioning for assets and personnel, providing high-precision tracking for healthcare, smart buildings, industrial environments, and advanced RTLS deployments.

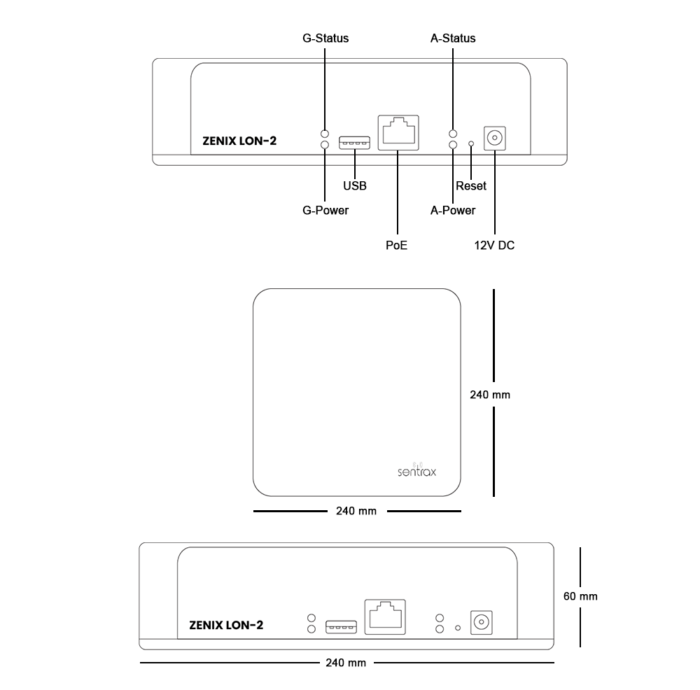

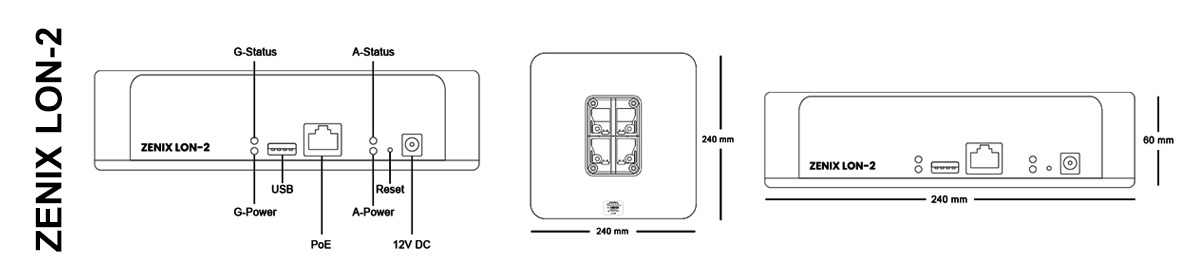

Mechanical Diagram
Product Specifications
| ENCLOSURE | |
|---|---|
| Material | ABS UL94V-0 |
| Type | BLE 5.1 AoA Scanner |
| Accessories | Ceiling Mount |
| Color | Off-White |
| Dimensions | 240 mm (W) x 240 mm (L) x 60 mm (H) |
| Protection Class | IP40 |
| Weight | 625g |
| ENVIRONMENT | |
|---|---|
| Frequency | 2.4GHz |
| SENSING | |
|---|---|
| Protocol | BLE 5.1 |
| Rx-Sensitivity | -103 dBm |
| Antenna | Array Antenna |
| Range | 5-50m** |
| OPERATING ENVIRONMENT | |
|---|---|
| Temperature Range | 0°C to 60°C |
| Operating Humidity | 90% |
| FEATURES |
|---|
| AoA filtering (Sentrax’s Proprietary Algorithm) |
| Beacon Above/Below detection |
| Beacon PDU Extraction |
| Remote tag devices configuration & update |
* Can be configured to send data on local/clients MQTT broker
**Distance depends heavily on the local deployment environment and the height of the ceiling.
| SOFTWARE CONNECTIVITY |
|---|
| Sentrax’s Solix Platform, MQTT* |
| HARDWARE CONNECTIVITY | |
|---|---|
| Supply Rating | 24 Watts (12 V) |
| Communication |
RJ45 – Ethernet (POE) WIFI – 2.4GHz b/g/n |
| Power Options |
RJ45 – POE 802.3at DC Adapter – 12 V/2A |
| SENSORS AND INTERFACES | |
|---|---|
| Azimuth Angle | 0 – 359 deg (± 5 deg) |
| Elevation Angle | 0 – 90 deg (± 5 deg) |
| Temperature | 0 – 65°C |
| Button | 1 user reset button |
| LED | 2 Red LEDs and 2 Green LEDs |
| ACCESSORIES |
|---|
| DC 12V/2A Adapter |
| POE Communication Cable |
| Ceiling Mount |
| Mounting Screws |
| Configuration Portal | |
|---|---|
| The ZENIX Configuration Portal is embedded web page for configuration and device settings management. With the help of this portal customers can check the status of the device, change its parameters, backup and restore it’s configuration/settings and upgrade firmware. |
 |
Applications & Use Cases
Industry-Specific Use Cases of ZENIX LON-2 (Indoor Locator and Gateway)
Healthcare
Enables sub-meter AoA tracking of patients, staff, and medical assets in critical zones, offers stable BLE coverage for hospital corridors and wards, and supports real-time safety alerts through precise position updates.
Smart Buildings
Provides accurate AoA-based indoor positioning for high-density areas, BLE-based presence detection for offices and meeting rooms, and enhances building automation with real-time occupancy and movement insights.
Warehouse & Logistics
Delivers precise AoA tracking for forklifts, pallets, and high-value tools, ensures wide-area BLE signal coverage across aisles and docks, and supports automated alerts for unauthorized movements or safety-critical events.
Contact Sales for Your Product
ZENIX LON-2
AoA BLE Scanner, POE, WiFi, Embedded MIPS processor, Antenna array, wall mount, indoor casing, IP40 protection.
