Outdoor BLE Proximity Locator & Gateway | IP67 Rated, GPS, LTE Enabled

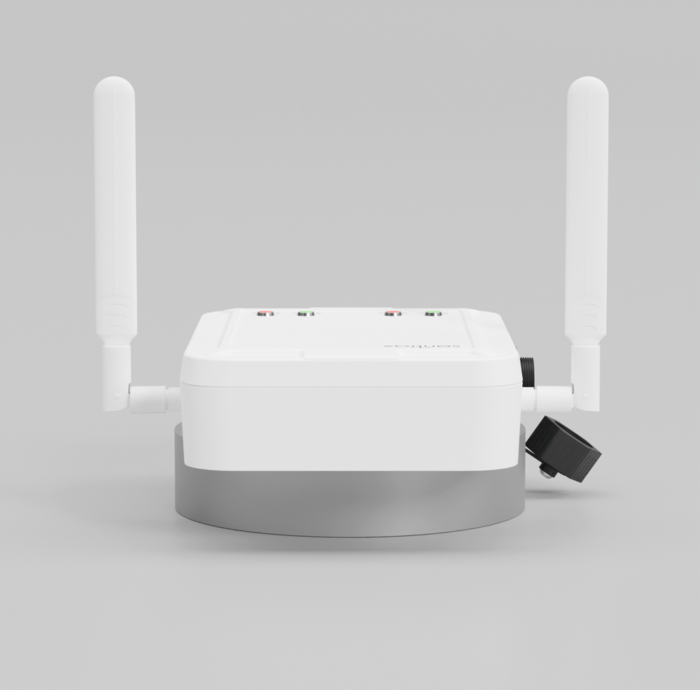

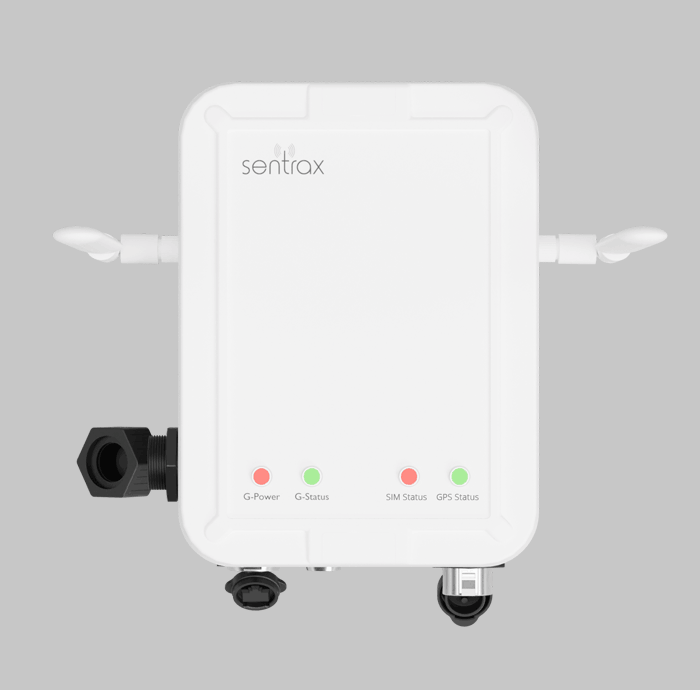

What is ZENIX LEF-3

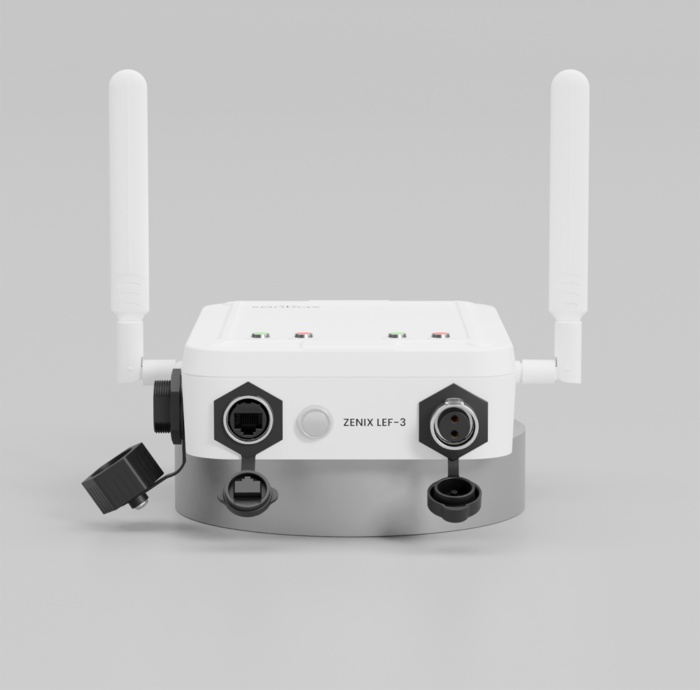

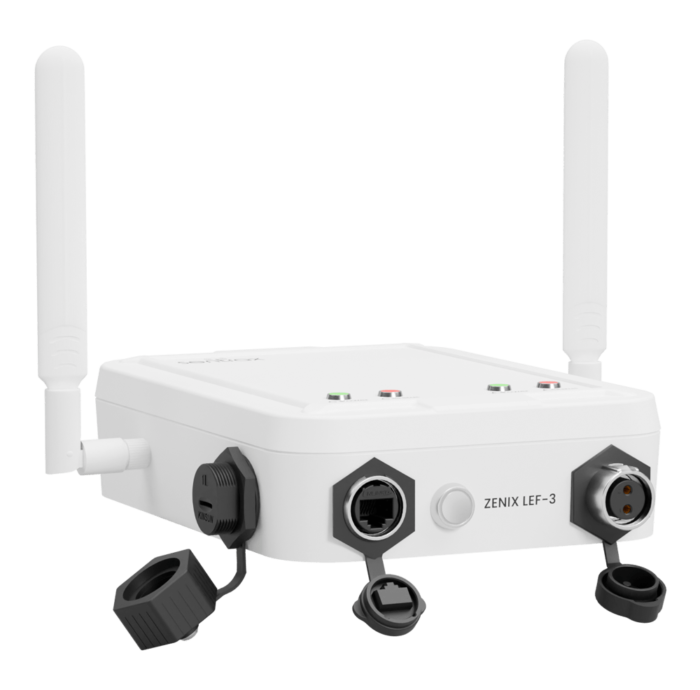

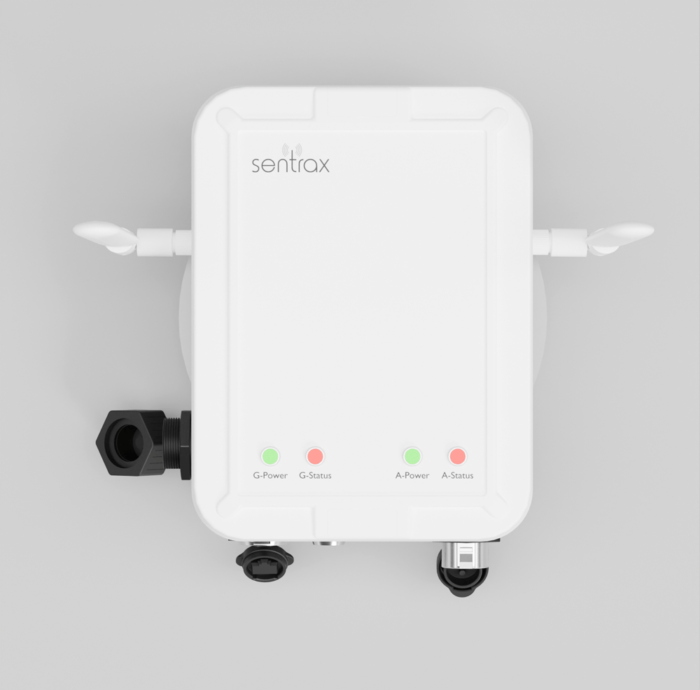

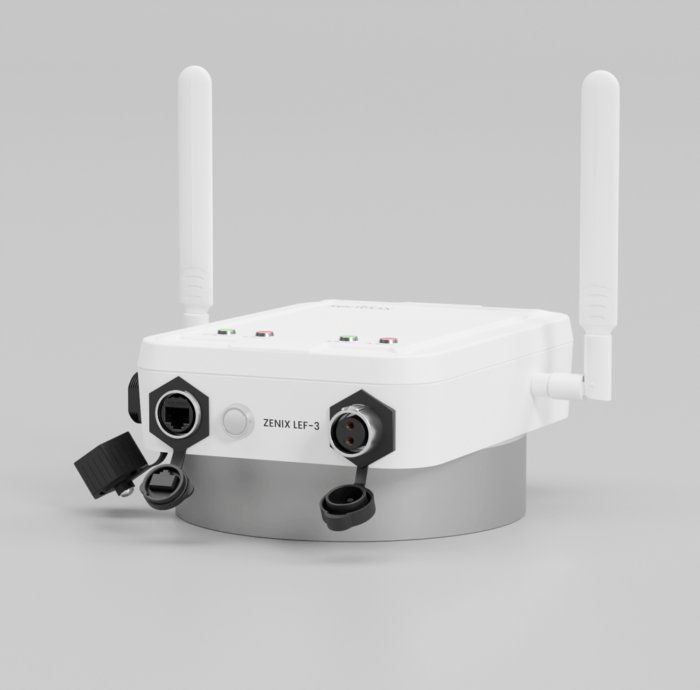

The ZENIX LEF-3 is a durable, outdoor BLE RSSI locator and gateway designed for harsh environments where you need reliable BLE-based proximity tracking. Built with a rugged IP67 enclosure, GPS, LTE connectivity, and external antennas, it scans nearby BLE beacons/tags and forwards signal strength data (RSSI) to your RTLS infrastructure. With its embedded processor running Sentrax firmware and flexible network interfaces (PoE, Wi-Fi, LTE), the LEF-3 is ideal for outdoor RTLS use cases like yard tracking, people safety, and large outdoor assets.
It supports advanced capabilities such as Proximity BLE Tag Tracking, People Tracking, BLE Tags Healthcheck monitoring
Key Features & Benefits
Outdoor RSSI-based BLE Scanning
Uses BLE 5.1 to scan for tag or beacon signals, analyzes received signal strength (RSSI) to infer proximity.
Long-Range Coverage
External antennas provide extended BLE scan range (10–50 m, depending on environment).
Compact, Outdoor Mounting
Comes with a wall or pole mount system for flexible outdoor installation.
Remote Tag Configuration & Updates
Supports remote configuration and firmware updates of connected tags.

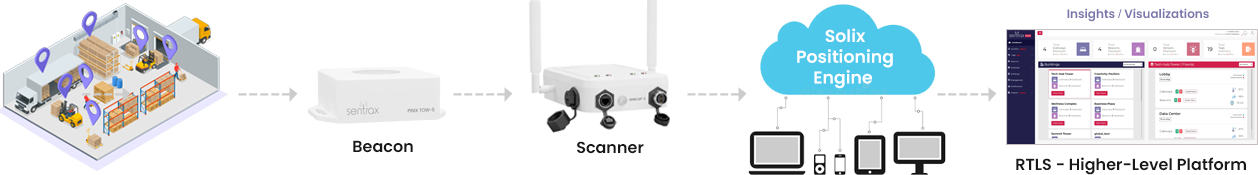

How It Works?

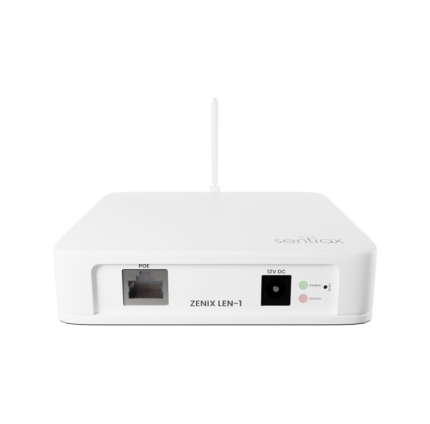

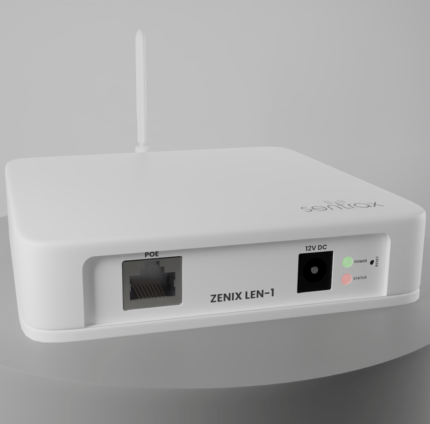

The ZENIX LEN-1 is a BLE Indoor Scanner Locator that enables real-time tracking and presence detection across industries, healthcare, and smart buildings, offering reliable performance and easy installation.

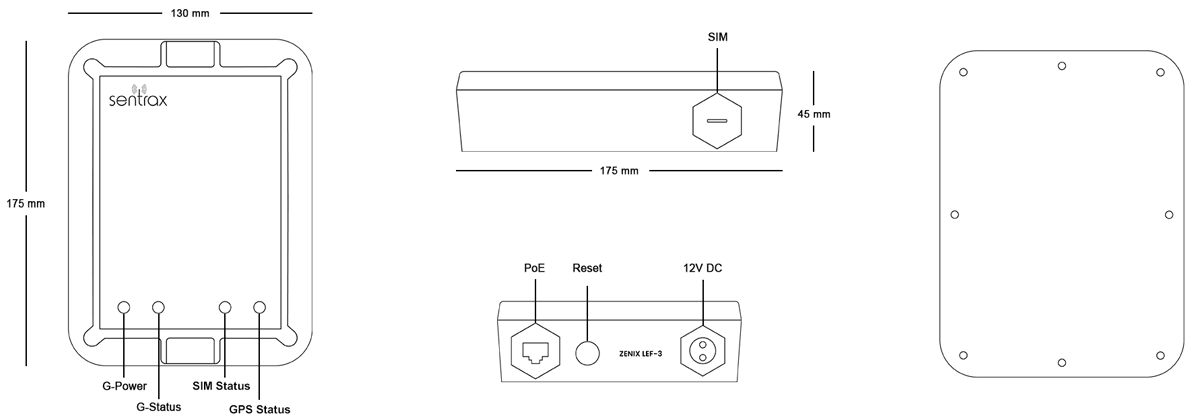

Mechanical Diagram
Product Specifications
| ENCLOSURE | |
|---|---|
| Material | ABS |
| Type | BLE 5.1 Scanner |
| Accessories | Wall/Pole Mount |
| Color | Off-White |
| Dimensions | 175mm x 130mm x 45mm |
| Protection Class | IP67 |
| Weight | 266g |
| Antenna Type | External antenna |
| ENVIRONMENT | |
|---|---|
| Frequency | 2.4GHz |
| SENSING | |
|---|---|
| Protocol | BLE 5.1 |
| Rx-Sensitivity | -103 dBm |
| Antenna | External Antenna |
| Range | 10–50m** |
| OPERATING ENVIRONMENT | |
|---|---|
| Temperature Range | 0°C to 60°C |
| Operating Humidity | 90% |
| FEATURES |
|---|
| BLE filtering (Sentrax’s Proprietary Algorithm) |
| GPS Positioning |
| Enable LAN, WIFI & LTE Connectivity |
| Beacon PDU Extraction |
| Remote tag devices configuration & update |
* Can be configured to send data on local/clients MQTT broker
** Signal propagation depends heavily on environment conditions
*** Pending
| SOFTWARE CONNECTIVITY |
|---|
| Sentrax’s Solix Platform, MQTT* |
| HARDWARE CONNECTIVITY | |
|---|---|
| Supply Rating | 18 Watts (12 V) |
| Communication |
RJ45 – Ethernet (POE) WIFI – 2.4GHz b/g/n LTE Connectivity |
| Power Options |
RJ45 – POE 802.3af DC Adapter – 12 V/1.5A |
| SENSORS AND INTERFACES | |
|---|---|
| Button | 1 User Button |
| Power LED | 1 Red LED |
| Status LED | 1 Green LED |
| Sim Slot | LTE Connectivity |
| ACCESSORIES |
|---|
| DC 12V/1.5A Adapter |
| POE Communication Cable |
| Two External Antennas |
| Mounting Screws |
| CERTIFICATIONS |
|---|
| CE, FC *** |
| Configuration Portal | |
|---|---|
| The ZENIX Configuration Portal is embedded web page for configuration and device settings management. With the help of this portal customers can check the status of the device, change its parameters, backup and restore it’s configuration/settings and upgrade firmware. |
 |
Applications & Use Cases
Industry-Specific Use Cases of ZENIX LEF-3 (Outdoor Locator and Gateway)
Industrial Yards & Outdoor Logistics
Track vehicles, containers, and heavy machinery in outdoor yards with sub-meter accuracy using AoA, enhancing safety and operational efficiency.
Construction & Mining
Monitor tools, equipment, and personnel across large, rugged sites. The LOF-2’s durability lets it operate in dusty, wet, and exposed environments.
Outdoor Worker Safety
Provide real-time location awareness for field personnel (e.g., maintenance crews, inspectors) and combine it with geofencing or risk-zone alerts.
