Smart Badge BLE Tag with Multi-Sensors

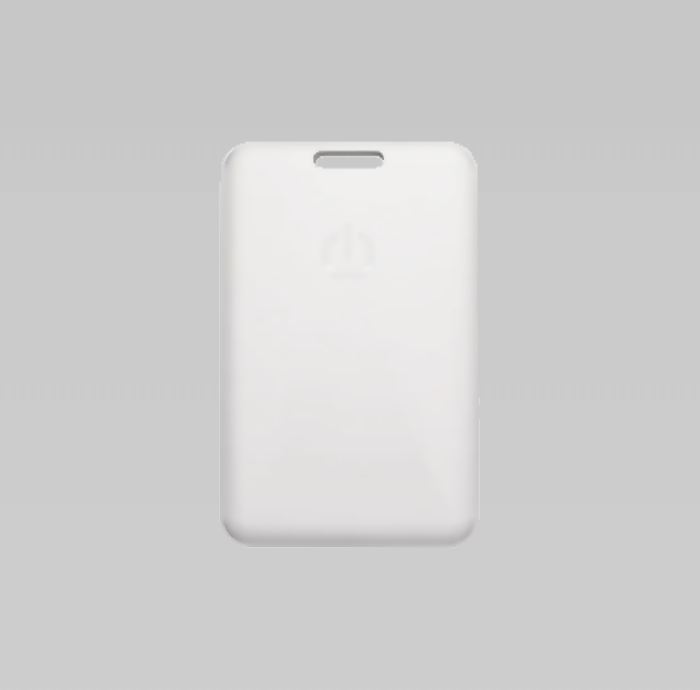

What is PINIX TOP-5?
The PINIX TOP-5 is a Smart Badge BLE 5.x Tag engineered for advanced positioning, tracking, and personal safety applications. It integrates a 3-axis accelerometer, a user-interactable panic/alert button, and a single red LED, all housed in an IP65-rated rugged ABS enclosure, offering a reliable solution for employee safety, visitor tracking, patient monitoring, and contactless access control. Its built-in 800mAh lithium battery provides 2–4 years of low-maintenance operation, ensuring dependable long-term performance.
Its core capabilities include employee positioning and safety tracking, visitor monitoring, patient tracking, contactless access control, panic/SOS alerts, and fall detection.
Key Features & Benefits
Protection
IP65-rated ABS enclosure, resistant to dust and low-pressure water jets.
Motion Sensing
3-axis accelerometer for motion detection and fall detection.
Battery Life
Built-in 800mAh lithium battery providing 2–4 years of operation depending on advertisement rate.
User Interaction
Single red LED and one panic/alert button for status notifications and emergency alerts.

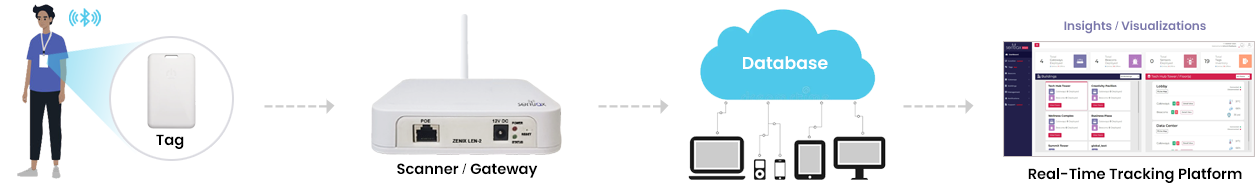

How It Works?
The PINIX TOP-5 continuously broadcasts BLE 5.x signals containing identification, motion, and alert data. Once worn by personnel or visitors, nearby BLE gateways capture these signals and transmit them through Wi-Fi, Ethernet, or cellular backhaul to the RTLS platform. Advanced algorithms then process the data, combining location, motion, and alert information for actionable insights.

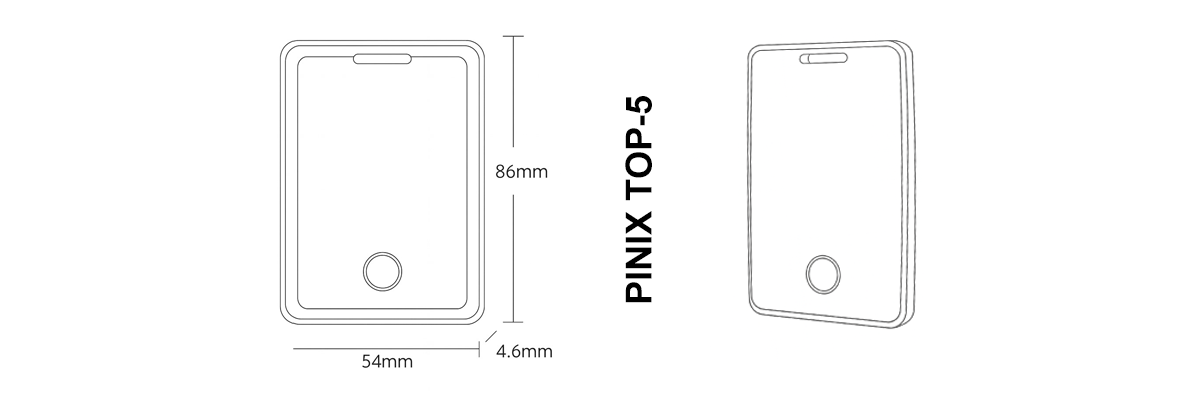

Mechanical Diagram
Product Specifications
| BLUETOOTH RADIO | |
|---|---|
| Type | Bluetooth Low Energy 5.1 |
| Advertisement | iBeacon, Eddystone (UID & TLM), cBeacon (Sentrax Proprietary) |
| Advertisement Interval | 100ms to 10 seconds |
| Frequency | 2.4GHz |
| Transmit Power | +4dBm to -20 dBm |
| Antenna Type | PCB antenna, Omni Directional |
| SENSORS AND INTERFACES | |
|---|---|
| Motion Sensing | 3 Axis Accelerometer |
| Button | 1 user interact-able button |
| LED | 1 Red LED |
| ENCLOSURE | |
|---|---|
| Material | ABS |
| Accessories | Lanyard & Card clip |
| Color | White |
| Dimensions | 86 mm (L) x 54 mm (W) x 4.6 mm (H) |
| Protection Class | IP65 |
| Weight | 19.5g |
1. Battery Life is calculated at 25 degrees Centigrade and 0 dbm transmit power.
| BATTERY | |
|---|---|
| Battery Type | CP224147 × 1, 800mAh, non-replaceable |
| Battery Life: | |
| (Advertisement Rate) | (Battery Life ¹) |
| Medium 500ms | 1 Year, 5 Months |
| Low 1000ms | 2 Years, 5 Months |
| OPERATING ENVIRONMENT | |
|---|---|
| Temperature Range | 0°C to 60°C |
| Operating Humidity | 90% |
| CERTIFICATIONS |
|---|
| CE, FCC |
| Sentrax Device Manager | |
|---|---|
| The Sentrax Device Manager (SDM) app allows you to manage PINIX beacons. You can discover nearby beacons, check their battery levels, and view their current settings, and modify them with a protected 4-digit settable PIN. |
 |
Applications & Use Cases
Industry-Specific Use Cases of PINIX TOP-5 (Smart Badge BLE Tag with Temperature Sensor)
People Tracking
Real-time monitoring of employees, visitors, and patients to ensure safety, compliance, and efficient movement across workplaces, secure facilities, and healthcare environments.
Access Control
Enable secure, proximity-based access for personnel and visitors.
SOS Alert & Location Tracking
Trigger immediate alerts during emergencies, enabling rapid response and tracking.
