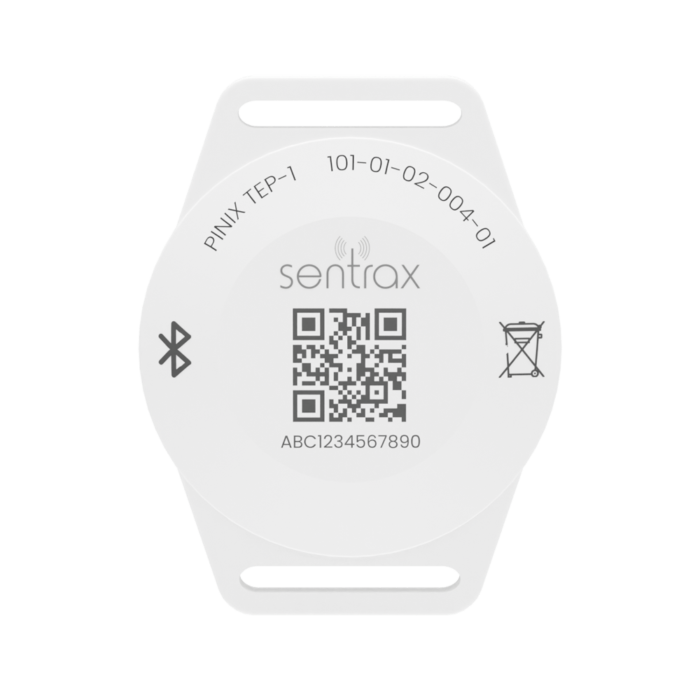

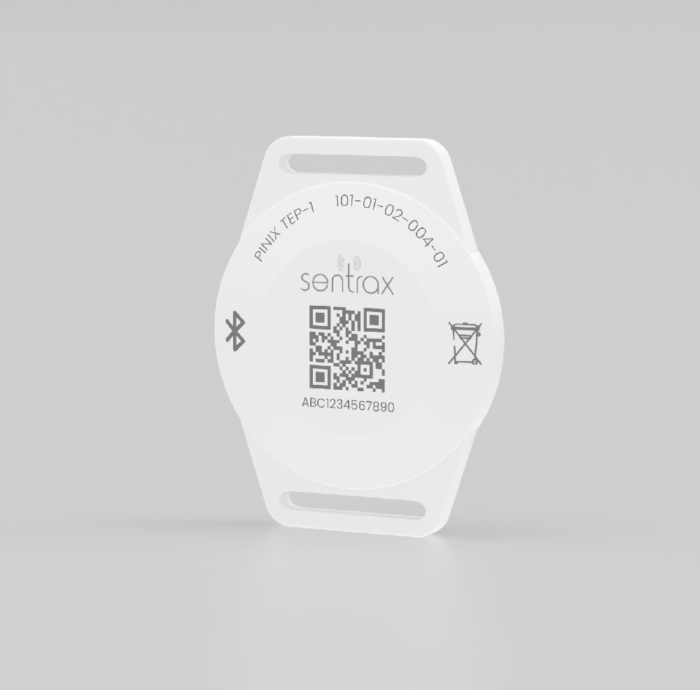

PINIX TEP-1
PINIX TEP-1
Description
The PINIX TEP-1 is a part of our advanced PINIX line of Bluetooth Low Energy 5.x beacon devices; it utilizes multi-standard beacon technology for superior performance. The tamper-proof wearable bracelet is designed for unparalleled safety
and independence in high-security medical environments, such as hospitals and nursing homes. It is ideal for positioning and location tracking of both people and goods, featuring an ultra-low power consumption chipset from the Nordic nRF52
series.
The PINIX TEP-1 provides maximum security and reliability, featuring advanced tamper and cut-off alerts that automatically trigger preset BLE advertisements in the event of tampering. With an optional SOS button, it provides immediate assistance in
critical situations. Designed for ease of use, the PINIX TEP-1 comes with comprehensive tools for seamless setup and installation, ensuring optimal performance and user confidence.
Applications
Features
Outdoor/Indoor BLE 5.0 Beacon for Positioning & Navigation, 7200mAh Lithium battery (7-13 months battery life), IP65 protection
| Bluetooth Radio | |
|---|---|
|
Type |
Bluetooth Low energy 5.0 |
|
Advertisement |
iBeacon, Eddystone (UID & TLM), sBeacon (Sentrax Proprietary) |
|
Advertisement interval |
100ms to 1seconds |
|
Frequency |
2.4GHz |
|
Transmit Power |
+4 dBm to -12 dBm |
|
Antenna Type |
PCB antenna, Omni Directional |
| Sensors and Interfaces | |
|---|---|
|
Accelerometer |
3 Axis |
|
Tamper-proofing |
Enabled |
|
LED |
1 LED |
|
Button |
Mechanical |
| Enclosure | |
|---|---|
|
Material |
ABS+PC & PVC |
|
Accessories |
Disposable strap to wear |
|
Color |
White |
|

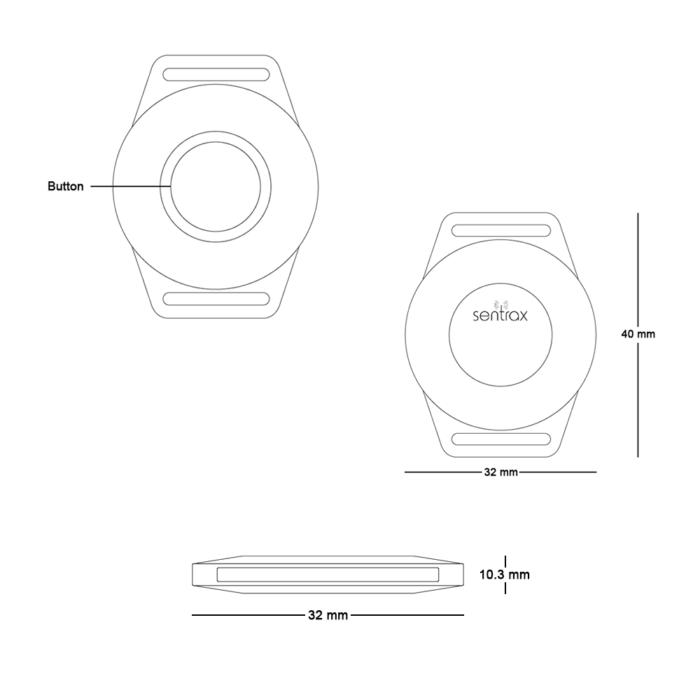

Dimensions |
40.0×32.0×10.3mm |
|
Protection Class |
IP67 |
|
Weight |
13.6g |
* Pending
| Battery | |
|---|---|
|
Battery Type |
CR2032 ×1, 220mAh, Non-replaceable |
|
Battery Life: |
|
|
(Advertisement Rate) |
(Battery Life 1) |
|
1000ms |
13 months |
|
500ms |
7.5 months |
| Operating Environment | |
|---|---|
|
Temperature Range |
-20°C to +60°C |
|
Operating Humidity |
0% ~ 95% |
| Certifications |
|---|
|
FCC & CE |
Sentrax Device Manager
With the Sentrax Device Manager (SDM) you can scan for nearby configurable PINIX beacons, display their battery status, view their ettings and make modifications to those settings. Configuration of beacons are password protected with a four (4) digit user settable PIN.
As an added safety feature, the beacons can only be configured with in a period of 15 minutes after installing the batteries or can be manually triggered into configuration mode by pressing the reset button on the Tag. However, this time duration can be increased through the settings to up to 3 weeks or forever.
