PINIX TEF-1
PINIX TEF-1

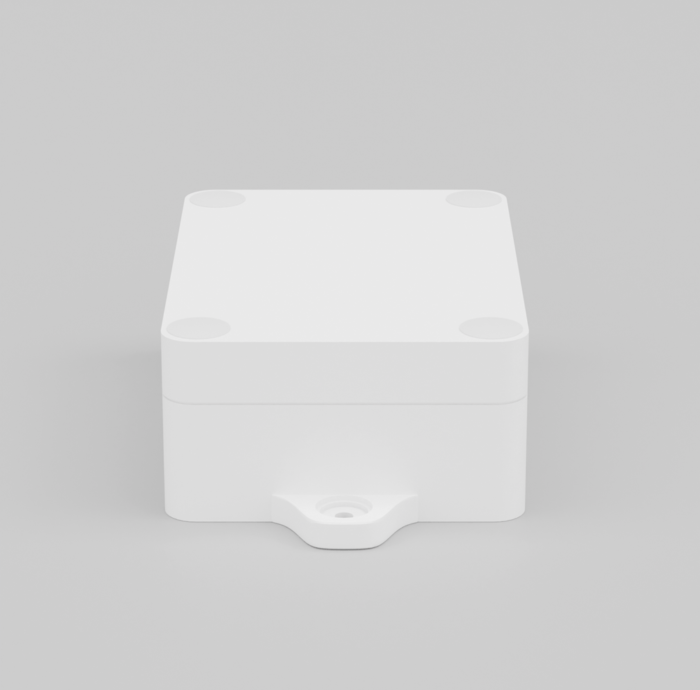

Outdoor Anchor BLE Beacon Tag with Temperature Sensors
What is PINIX TEF-1

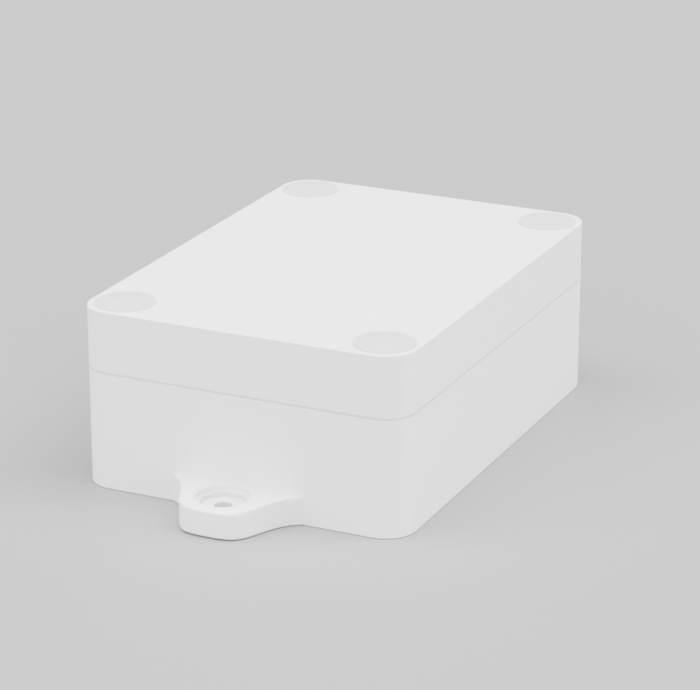

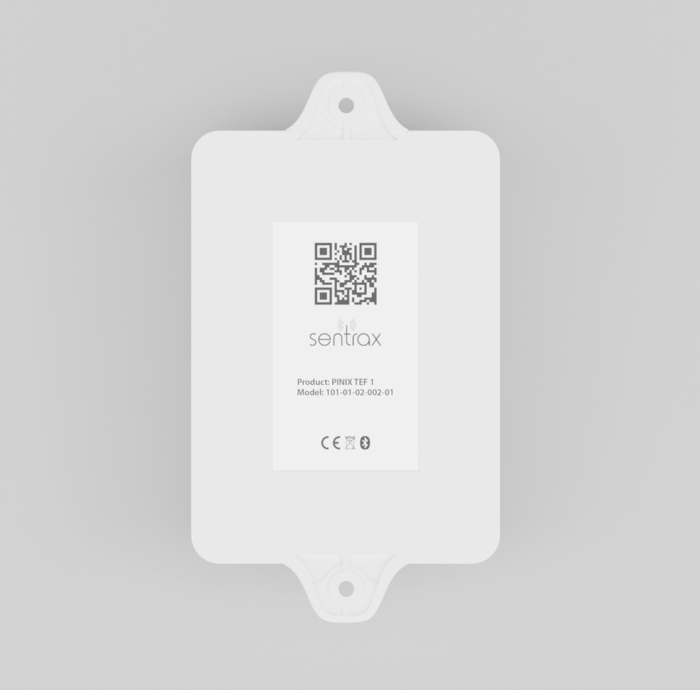

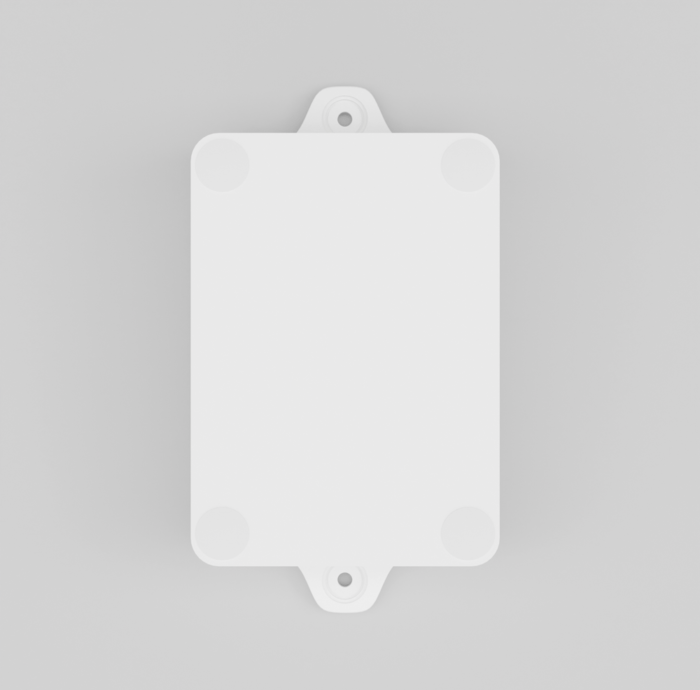

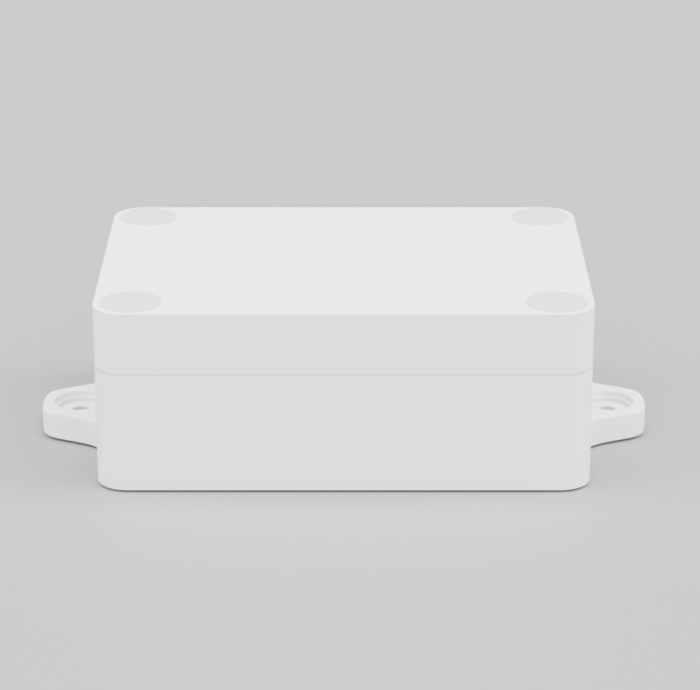

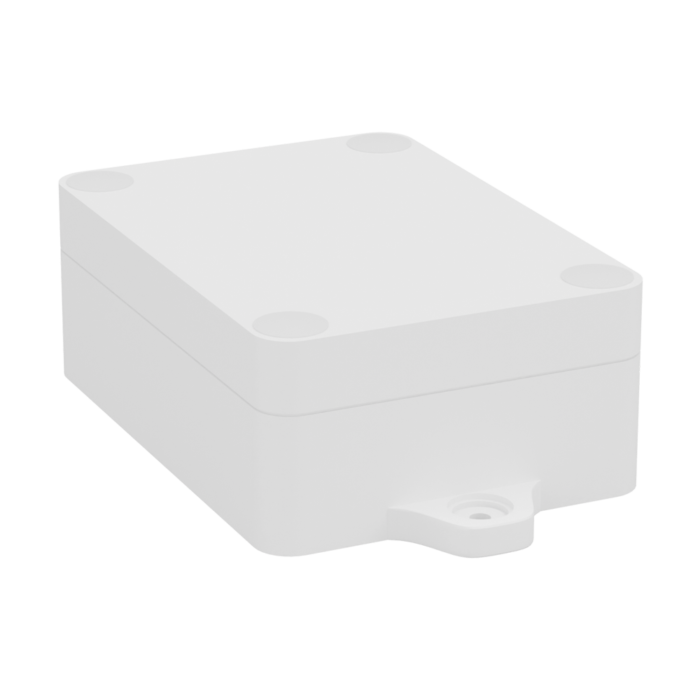

The PINIX TEF-1 is an Outdoor Anchor BLE 5.x Beacon Tag engineered for precise positioning, navigation, and temperature monitoring in both indoor and outdoor environments. It integrates a 3-axis motion sensor, internal temperature sensor, a single red LED, and an IP65-rated rugged ABS enclosure, offering a durable and reliable solution for mixed indoor-outdoor location-based applications. Its high-capacity 7200mAh replaceable lithium battery provides exceptional 9–10 years of low-maintenance operation, ensuring long-term reliability in demanding environments.
Its core capabilities include indoor and outdoor navigation, indoor and outdoor positioning, location-based messaging and alerts, and location-based marketing.
Key Features & Benefits
Protection
IP65-rated ABS enclosure, resistant to dust and low-pressure water jets.
Battery Life
High-capacity 7200mAh replaceable lithium battery providing 9–10 years of operation depending on advertisement rate.
Temperature Monitoring
Built-in sensor for monitoring environmental conditions.
User Interaction
Single red LED for status notifications.

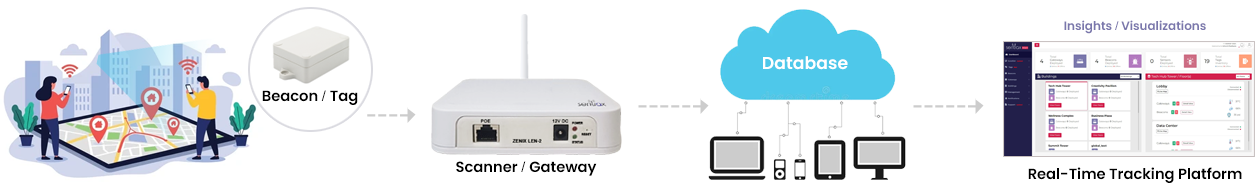

How It Works?
The PINIX TEF-1 continuously broadcasts BLE 5.x signals containing identification, motion, and temperature data. Once deployed on walls, poles, or other anchor points, nearby BLE AoA gateways capture these signals and transmit them through Wi-Fi, Ethernet, or cellular backhaul to the RTLS platform. Advanced AoA algorithms then process the data, combining location, motion, and temperature readings for actionable insights.

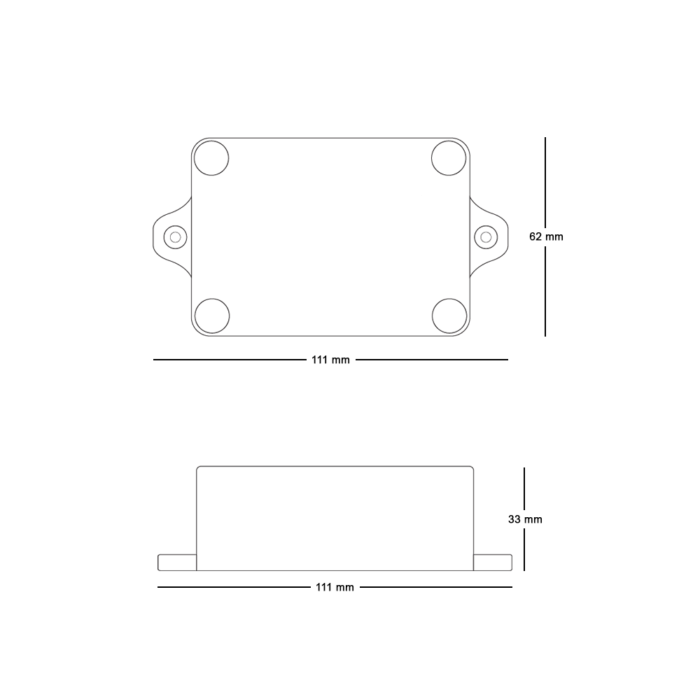

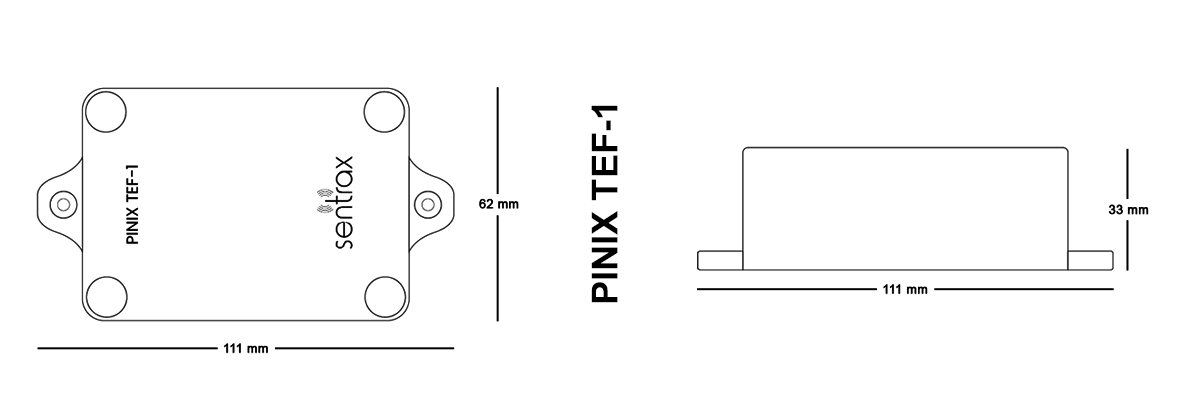

Mechanical Diagram
Product Specifications
| ENCLOSURE | |
|---|---|
| Material | ABS |
| Accessories | Double sided tape, Mounting Screws |
| Color | Light Gray |
| Dimensions | 111mm (L) x 62mm (W) x 33mm (H) (with flanges) |
| Protection Class | IP65 |
| Weight | 140g |
| BLUETOOTH RADIO | |
|---|---|
| Type | Bluetooth Low Energy 5.x |
| Advertisement | iBeacon, Eddystone (UID & TLM), sBeacon (Sentrax Proprietary) |
| Advertisement Interval | 100ms to 10.2seconds |
| Frequency | 2.4GHz |
| Transmit Power | +4dBm to -20 dBm |
| Antenna Type | PCB antenna, Omni Directional |
| SENSORS AND INTERFACES | |
|---|---|
| Motion Sensing | 3 Axis Accelerometer |
| Temperature | Internal Temperature Sensor |
| LED | 1 Red LED |
1. Assuming that the beacon will be non connectable and non scannable for these features with accelerometer enabled otherwise life will decrease further.
| BATTERY | |
|---|---|
| Battery Type | ER14505 x 3, 7200mAh, Replaceable |
| Battery Life: | |
| (Advertisement Rate) | (Battery Life 1) |
| 500ms | 9 years, 4 months |
| 1000ms | 10 years, 7 months |
| OPERATING ENVIRONMENT | |
|---|---|
| Temperature Range | -30°C to 75°C |
| Operating Humidity | 90% |
| CERTIFICATIONS |
|---|
| CE |
| Sentrax Device Manager | |
|---|---|
| The Sentrax Device Manager (SDM) app allows you to manage PINIX beacons. You can discover nearby beacons, check their battery levels, and view their current settings, and modify them with a protected 4-digit settable PIN. |
 |
Applications & Use Cases
Industry-Specific Use Cases of PINIX TEF-1 (Outdoor Anchor BLE Beacon Tag with Internal Temperature Sensor)
Location-Based Messaging & Alerts
Send proximity-based notifications, alerts, or instructions to personnel or devices depending on their location, improving responsiveness and safety.
Indoor & Outdoor Positioning
Track the real-time location of anchor points, assets, or people across campuses, warehouses, or industrial sites, enhancing operational visibility and safety.
Location-Based Marketing
Deliver context-aware promotional content, offers, or messages to users in specific zones within retail, exhibition, or commercial environments.
Contact Sales For Your Product
PINIX TEF-1
The Outdoor BLE 5.x Beacon is designed for advanced positioning and navigation applications. It features a powerful 7200mAh lithium battery that provides an impressive 9 to 10 years of battery life. With IP65-rated protection, it offers excellent durability and reliability, making it ideal for outdoor environments.
