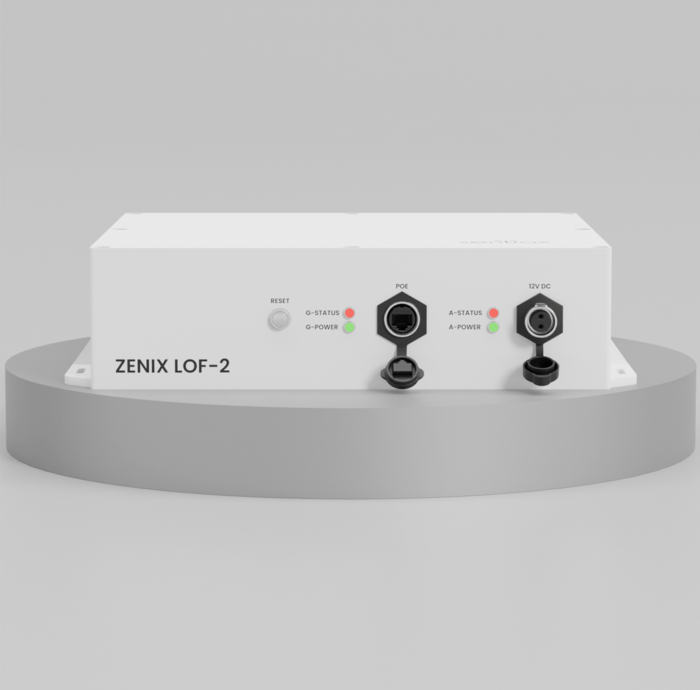

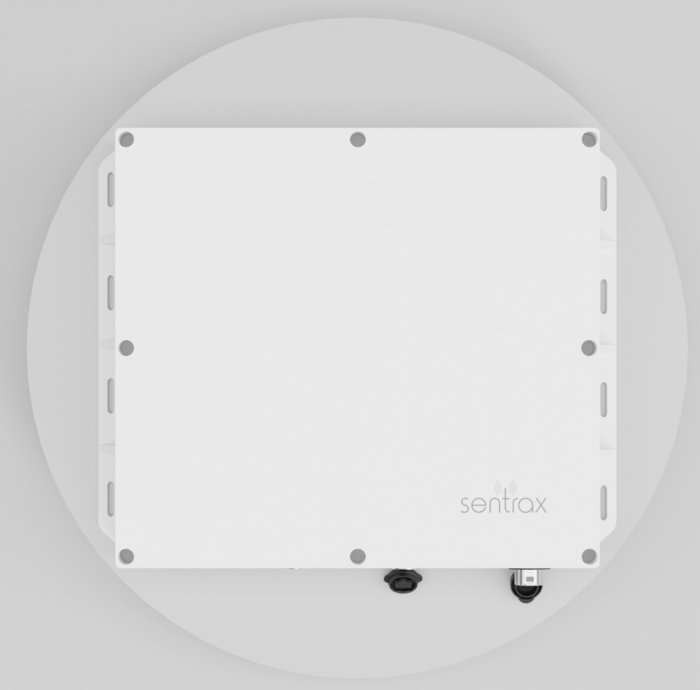

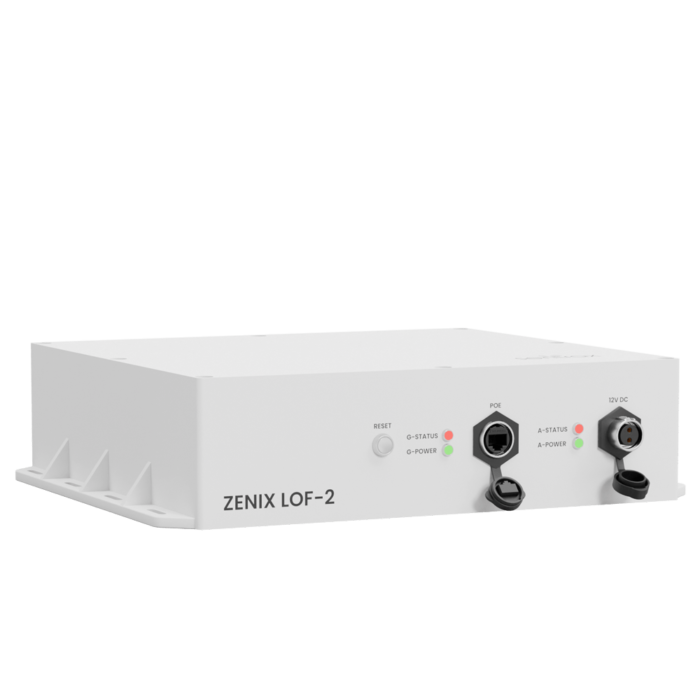

What is ZENIX LOF-2
The ZENIX LOF-2 is an outdoor BLE AoA (Angle-of-Arrival) locator and gateway, specifically designed to operate in challenging outdoor and industrial settings. Built for real-world RTLS (Real-Time Location System) coverage, this device combines edge computing, advanced position-calculation algorithms, and robust connectivity via PoE or Wi-Fi. With IP67 protection, it’s engineered to withstand harsh environments — making it ideal for outdoor tracking of assets, personnel, and vehicles.
It supports advanced capabilities such as Sub-meter Level BLE Tag Tracking, Asset Tracking, People Tracking, BLE Tags Health Check Monitoring
Key Features & Benefits
Outdoor AoA Positioning
Uses Angle-of-Arrival across multiple antennae to calculate precise sub-meter locations, even in difficult outdoor environments.
Hybrid RTLS Capability
Combines AoA-based precision with RSSI proximity sensing for flexible tracking, allowing a hybrid deployment for location intelligence.
Rugged & Weather-Resistant
Rated to IP67, making it resistant to dust, water, and harsh outdoor conditions — reliable for industrial or yard deployments.
Secure Connectivity
Supports PoE and Wi-Fi to reliably forward collected location data to your RTLS platform or MQTT broker

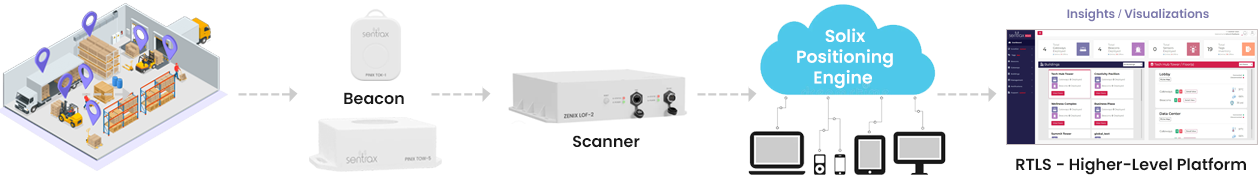

How It Works?

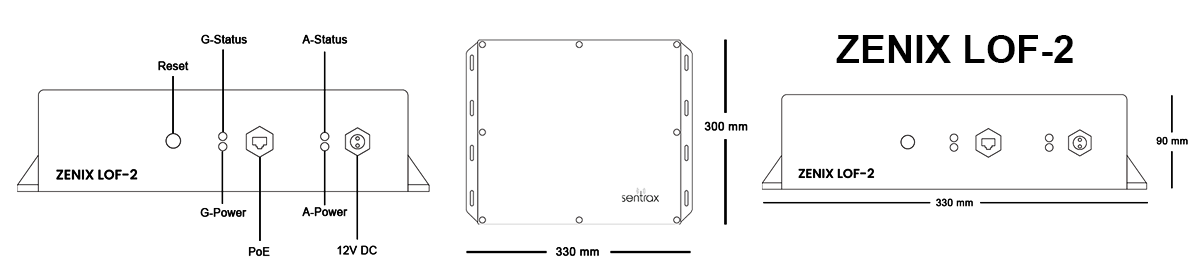

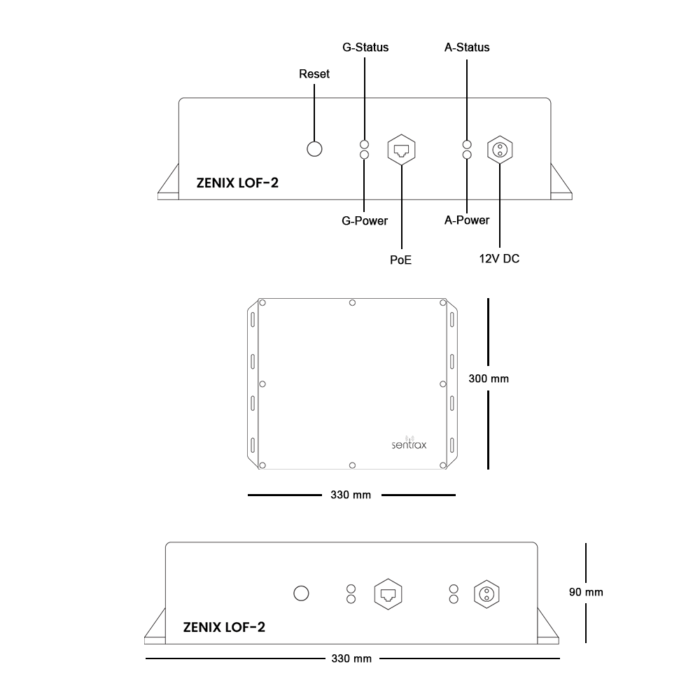

Mechanical Diagram
Product Specifications
| ENCLOSURE | |
|---|---|
| Material | ABS |
| Type | BLE 5.1 Scanner |
| Accessories | Wall/Pole Mount |
| Color | Off-White |
| Dimensions | 175mm x 130mm x 45mm |
| Protection Class | IP67 |
| Weight | 266g |
| Antenna Type | External antenna |
| ENVIRONMENT | |
|---|---|
| Frequency | 2.4GHz |
| SENSING | |
|---|---|
| Protocol | BLE 5.1 |
| Rx-Sensitivity | -103 dBm |
| Antenna | External Antenna |
| Range | 10-50m** |
| OPERATING ENVIRONMENT | |
|---|---|
| Temperature Range | 0°C to 60°C |
| Operating Humidity | 90% |
| FEATURES | |
|---|---|
| BLE filtering (Sentrax’s Proprietary Algorithm) | |
| GPS Positioning | |
| Enable LAN, WiFi & LTE Connectivity | |
| Beacon PDU Extraction | |
| Remote tag devices configuration & update | |
* Can be configured to send data on local/clients MQTT broker
**. Distance depends heavily on the local deployment environment and the height of the ceiling.
***Pending.
| SOFTWARE CONNECTIVITY |
|---|
| Sentrax’s Solix Platform, MQTT* |
| HARDWARE CONNECTIVITY | |
|---|---|
| Supply Rating | 18 Watts (12 V) |
| Communication |
RJ45 – Ethernet (POE) WIFI – 2.4GHz b/g/n LTE Connectivity |
| Power Options |
RJ45 – POE 802.3af DC Adapter – 12 V/1.5A |
| SENSORS AND INTERFACES | |
|---|---|
| Button | 1 User Button |
| Power LED | 1 Red LED |
| Status LED | 1 Green LED |
| Sim Slot | LTE Connectivity |
| ACCESSORIES | |
|---|---|
| DC 12V/1.5A Adapter | |
| POE Communication Cable | |
| Two External Antennas | |
| Mounting Screws | |
| CERTIFICATIONS | |
|---|---|
| CE, FC *** | |
| Configuration Portal | |
|---|---|
| The ZENIX Configuration Portal is embedded web page for configuration and device settings management. With the help of this portal customers can check the status of the device, change its parameters, backup and restore it’s configuration/settings and upgrade firmware. |
 |
Applications & Use Cases
Industry-Specific Use Cases of ZENIX LOF-2 (Outdoor Locator and Gateway)
Industrial Yards & Outdoor Logistics
Track vehicles, containers, and heavy machinery in outdoor yards with sub-meter accuracy using AoA, enhancing safety and operational efficiency.
Construction & Mining
Monitor tools, equipment, and personnel across large, rugged sites. The LOF-2’s durability lets it operate in dusty, wet, and exposed environments.
Outdoor Worker Safety
Provide real-time location awareness for field personnel (e.g., maintenance crews, inspectors) and combine it with geofencing or risk-zone alerts.
Contact Sales for Your Product
ZENIX LOF-2
AoA BLE Scanner, POE, WiFi, Embedded MIPS processor, Antenna array, wall & pole mount, outdoor casing, IP66 protection.
