PINIX TOK-1
PINIX TOK-1
Smart Badge BLE AoA Tag with Multi-Sensors

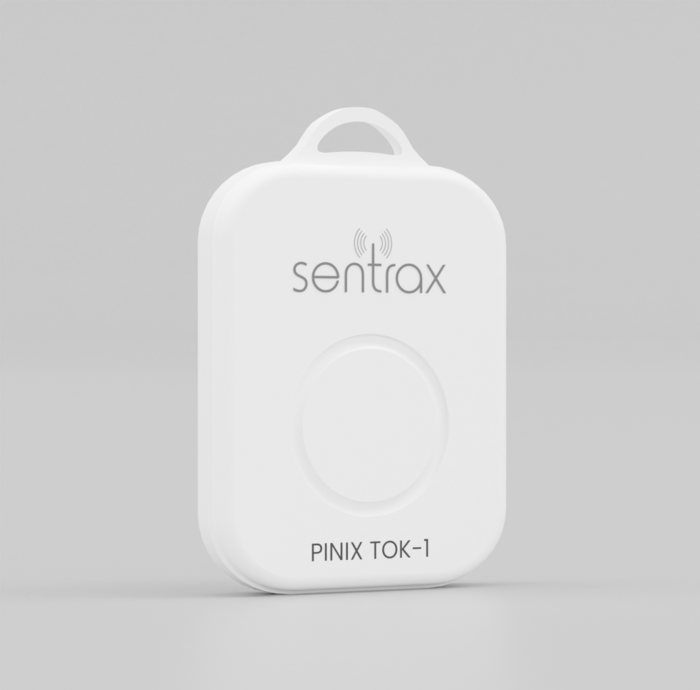

What is PINIX TOK-1?
The PINIX TOK-1 is a Smart Badge BLE 5.x AoA tag engineered for person tracking, indoor localization, and temperature monitoring. It integrates a motion sensor, internal temperature sensor, user button, LED indicators, and an IP65-rated rugged enclosure, offering a versatile solution for smart-building, workplace safety, and indoor navigation applications. Its replaceable CR2032 button cell ensures low-maintenance operation with up to 6 months of battery life, supporting reliable AoA-based positioning.
Its core capabilities include precision asset tracking, precision tracking, motion detection, temperature monitoring, and a panic/SOS button.
Key Features & Benefits
Protection
IP65-rated ABS enclosure, resistant to dust and low-pressure water jets.
Battery Life
Replaceable 225mAh CR2032 battery with 4–6 months of operation depending on advertisement rate.
Temperature Monitoring
Built-in sensor for monitoring environmental conditions.
User Interaction
Single interactable button and tri-color LEDs (Blue, Red, Green) for notifications.

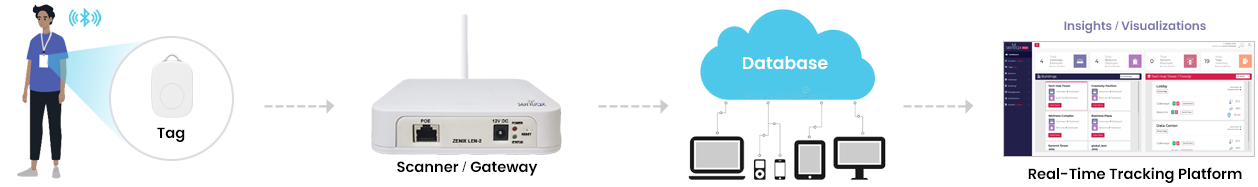

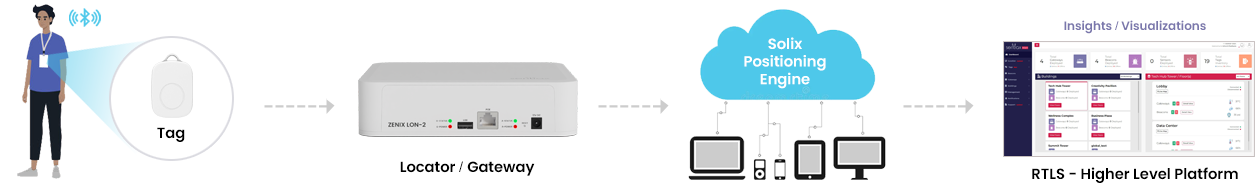

How It Works?
The PINIX TOK-1 is a BLE 5.x AoA smart badge designed for real-time people tracking, motion sensing, and temperature monitoring in workplaces, smart buildings, and indoor navigation environments.

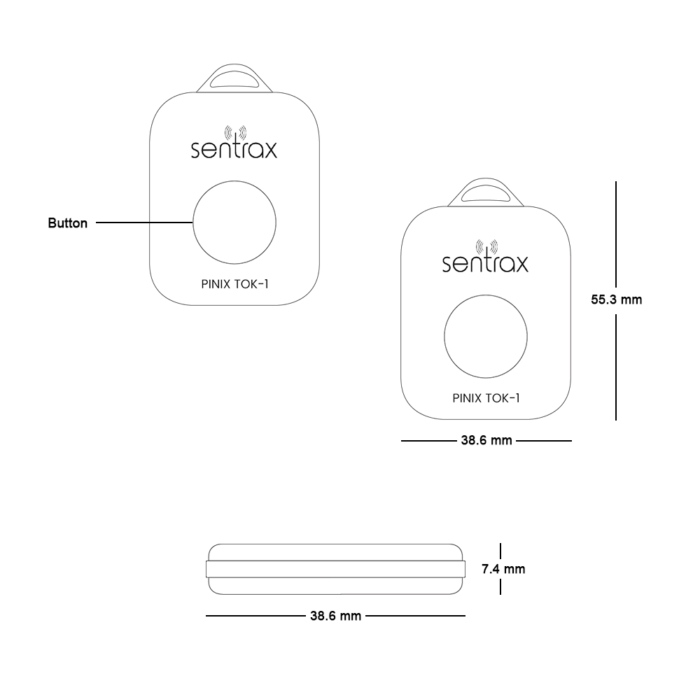

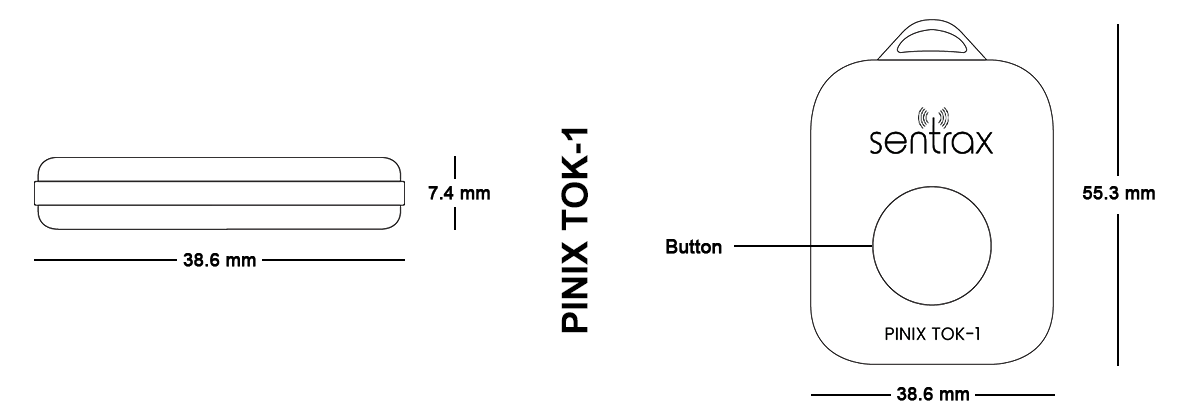

Mechanical Diagram
Product Specifications
| BLUETOOTH RADIO | |
|---|---|
| Type | Bluetooth Low energy 5.1 |
| Advertisement | iBeacon, Eddystone (UID & TLM), sBeacon (Sentrax Proprietary) |
| Advertisement Interval | 100ms to 10 seconds |
| Frequency | 2.4GHz |
| Transmit Power | +4dBm to -20 dBm |
| Antenna Type | PCB antenna, Omni Directional |
| SENSORS AND INTERFACES | |
|---|---|
| Motion Sensing | 3 Axis Accelerometer |
| Temperature | Internal Temperature Sensor |
| Button | 1 user interact-able button |
| LED | 3 LEDs (Blue, Red and Green) |
| ENCLOSURE | |
|---|---|
| Material | ABS |
| Accessories | Key Ring |
| Color | White |
| Dimensions | 55.3 mm (L) x 38.6 mm (H) x 7.4 mm (H) |
| Protection Class | IP65 |
| Weight | 12g |
| BATTERY | |
|---|---|
| Battery Type | CR2032 x 1, 225mAh, Replaceable |
| (Advertisement Rate) | (Battery Life) |
| 500ms | 4 Months |
| 1000ms | 6 Months |
| OPERATING ENVIRONMENT | |
|---|---|
| Temperature Range | -20°C to 60°C |
| Operating Humidity | 90% |
| CERTIFICATIONS | |
|---|---|
| CE | (Pending) |
| Sentrax Device Manager | |
|---|---|
| The Sentrax Device Manager (SDM) app allows you to manage PINIX beacons. You can discover nearby beacons, check their battery levels, and view their current settings, and modify them with a protected 4-digit settable PIN. |
 |
Applications & Use Cases
Industry-Specific Use Cases of PINIX TOK-1 (Smart Badge BLE AoA Tag with Multi-Sensors)
Precision People Tracking in Workplaces
Monitor employee or visitor locations in real-time across offices, factories, or hospitals, with motion and temperature sensing to ensure safety and optimize workforce management.
Indoor Navigation & Smart Buildings
Guide personnel through complex indoor spaces, providing real-time location updates and route optimization while ensuring accurate tracking of movement and environmental conditions.
Location-Based Services
Enable high-precision proximity alerts, AoA-based geo-fencing, and real-time indoor location intelligence for personnel, enhancing safety, efficiency, and operational awareness.
